CAI - SCHNEIDER ELECTRIC GV2P14

B07J5LBPFP

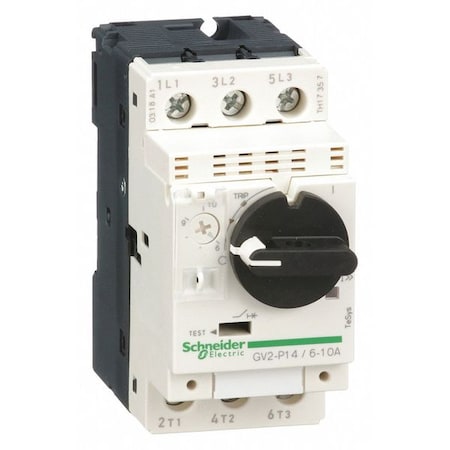

Schneider Electric Rotary Knob Manual Motor Starter, No Enclosure

Schneider Electric Rotary Knob Manual Motor Starter, No Enclosurezoom

Attributes

Key Value
3-Phase HP Rating (Max.)7-1/2 hp
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.10 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Amperage Rating6-10A
Amps AC6 to 10
ApplicationMOTOR
ApprovalsCSA, UL
BrandSchneider Electric
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2P14
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp Terminal
Control Typerotary handle
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Rating6 to 10 A
Depth3.819 in, 97 mm, 3.83 in
Description/Special Fea.Reliable Overload Prote.
Device Applicationmotor protection
Device Short NameGV2P
Dimensions3.504 x 1.772 x 3.819 ;.
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant with Exemptio.
Family SeriesSquare D Starters
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
FunctionMotor Starter
Gross Weight0.74 lbs
Height3.5 in, 89 mm
HP @ 1 Phase - 120V1/2 hp
HP @ 1 Phase - 230V1 1/2 hp
HP @ 3 Phase - 208V2 hp
HP @ 3 Phase - 240V3 hp
HP @ 3 Phase - 460-575V5/7.5, 5/7 1/2 hp
HP @ 3 Phase - 480V5 hp
HP @ 3 Phase - 575V7 1/2 hp
Ik Degree Of ProtectionIK04
Ip Degree Of ProtectionIP20 IEC 60529
ItemManual Motor Starter
Item NumberGV2P14
Item TypeCIRCUIT BREAKER
Length3.504 in
Line Rated Current10 A
Made in USANo
Magnetic Tripping Curre.138-138 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number224063
Max. Voltage600V AC
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Motor FLA Range6-10 A
Motor Power Kw3-3 kW 400/415 V AC 50/.
MountingScrew
Net Weight0.69 lbs
Network Frequency50/60 Hz IEC 60947-4-1
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
OperatorRotary Knob
Overload Relay Amp Sett.6 to 10 A, 6 to 10A
Phase3
Phase Failure Sensitivi.yes IEC 60947-4-1
Phase Loss SensitivityNo
Pilot LightYes
Poles Description3P
Power Dissipation Per P.2.5 W
Primary TypeMotor Starter
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Reset TypeAMBIENT COMPENSATED BIM.
RoHSYes
Rohs Exemption Informat.Yes
SeriesTeSys GV2, TeSys Deca S.
Single-Phase HP Rating .1-1/2 hp
Size45 MM,89 MM,97 MM
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage10 Amp
Starter Overload Amp Se.6-10 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandGV2P,TESYS,TESYS GV2
Sub ComponentTeSys GV2 Manual Starte.
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew
Thermal Protection Adju.6-10 A IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologythermal-magnetic
UNSPSC39121521
UPC785901832577
UPC Code785901832577
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V, 690 V AC 50/60 H.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 45 mm, 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomebay.com_7gms_pp6gbphGV2P1475.781In StockSCHNEIDER ELECTRIC75.78 @ 1
AmazonTPB001V9TDPM79.01In Stock1SCHNEIDER ELECTRIC79.0 @ 1
thumbzoomebay.com_123.oemcompanyGV2P1492.91In StockSCHNEIDER ELECTRIC92.9 @ 1
thumbzoomebay.com_etechsurplusGV2P1493.311In StockSCHNEIDER ELECTRIC93.31 @ 1
thumbzoomkempstoncontrols.co.ukGV2-P14110.6064765110Schneider110.6064765 @ 1
thumbzoomebay.com_marine-estoreGV2P14115.01In StockSCHNEIDER ELECTRIC115.0 @ 1
thumbzoomebay.com_sigmasurplusGV2P14164.151In StockSCHNEIDER ELECTRIC164.15 @ 1
thumbzoomebay.com_northeast-partsGV2P14167.01In StockSCHNEIDER ELECTRIC167.0 @ 1
hvacdiscountstore.comSCH--GV2P14176.61In StockSCHNEIDER ELECTRIC (SQUARE D)176.6 @ 1
thumbzoommidwestapplianceparts.comGV2P14-SQ-P182.151In StockSquared182.15 @ 1
standardelectricsupply.com45308197.68123Schneider Electric197.68 @ 1
Graybar96073675201.28641In StockSquare D (Schneider Electric)201.2864 @ 1
thumbzoomblackhawksupply.comGV2P14206.211In StockSquare D206.21 @ 1
thumbzoommostelectric.comGV2P14219.7713SQUARE D/TELEMECANIQUE219.77 @ 1
thumbzoomptacsolutions.comGV2P14222.981In StockSchneider Electric (Square D)222.98 @ 1
thumbzoomebay.com_plccenterGV2P14240.91In StockSCHNEIDER ELECTRIC240.9 @ 1
thumbzoomgordonelectricsupply.comGV2P14245.01In Stock10SQUARE D245.0 @ 1
thumbzoomZoroG2632962246.891161Schneider Electric0.76246.89 @ 1
thumbzoomGalcoGV2P14-SQD249.1112Square D0.74249.11 @ 1
steinerelectric.com58835253.441In StockSquare D?253.44 @ 1
rspsupply.comSCHNEIDER GV2P14253.441In StockSchneider Electric253.44 @ 1
thumbzoomsustainablesupply.comC1182098264.681In StockSchneider Electric0.76264.68 @ 1
thumbzoommayerelectric.comSQDGV2P14266.34125SQUARE D266.34 @ 1
grainger.caTLQGV2P14276.038537921In StockSCHNEIDER ELECTRIC0.76276.03853792 @ 1
thumbzoomNational Supply Network58134008282.11In StockSchneider Electric282.1 @ 1
thumbzoomebay.com_rgb_automatykaGV2P14290.51In StockSCHNEIDER ELECTRIC290.5 @ 1
us.rs-online.com70007457319.021200Schneider Electric319.02 @ 1
thumbzoomNewark15B8815327.811In StockSCHNEIDER ELECTRIC327.81 @ 1
thumbzoomcrescentelectric.com42490334.68169Schneider Electric334.68 @ 1
simplybreakers.comGV2P14347.991In StockSchneider Electric347.99 @ 1
thumbzoomRaptor SuppliesAH2PQT468.5495491In StockSCHNEIDER ELECTRIC468.549549 @ 1
