Description:

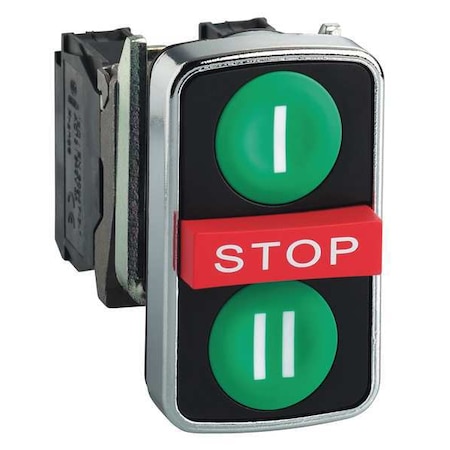

Multihead Operators with Contacts, Number of Heads 3, Legend/BACKGROUND Color White/Green, White/Red, Shape Rectangular, Type of Operator (1) Extended Button, (2) Flush Buttons, Legend I/Stop/II, Contact Form 1NO/1NC, Contact Rating 10A @ 600V AC, Size 22 mm, Action Momentary, NEMA Contact Rating Designation A600/Q600, NEMA Rating 1, 12, 3, 4, 4X, IP Rating 66, 69K, Head Material Metal, Standards CE, CSA, RoHS, UL
Attributes
| Key ^ | Value |
|---|---|
| Action | Momentary |
| Ambient Air Temperature For Storage | -40-70?C |
| Bezel Material | chromium plated metal |
| Colour Of Marking | black marking when white caps || white marking when green, red or black caps |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Contacts Type And Composition | 1 NO + 1 NC + 1 NO |
| Device Short Name | XB4 |
| Electrical Reliability | ? < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ? < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Head Material | Metal |
| IP Rating | 66, 69K |
| Item, Product Type | Multihead Operators with Contacts |
| Legend | I/Stop/II |
| Legend/Background Color | White/Green, White/Red |
| Mounting Diameter, Size | 22 mm |
| NEMA Contact Rating Designation | A600/Q600 |
| NEMA Rating | 1, 12, 3, 4, 4X |
| Number of Heads | 3 |
| Shape | Rectangular |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm |
| Standards | CE, CSA, RoHS, UL |
| Type of Operator | (1) Extended Button, (2) Flush Buttons |
