Schneider Electric XB5AD21

B003UR2DU0

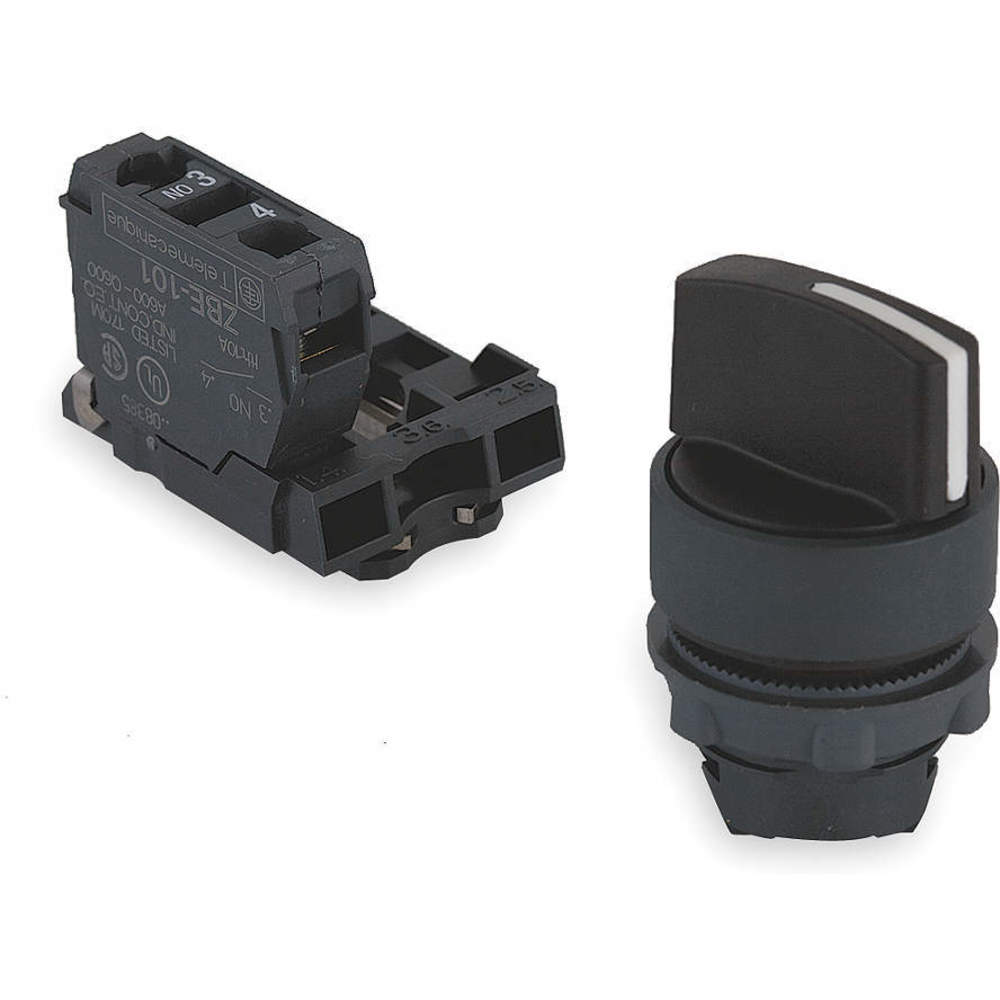

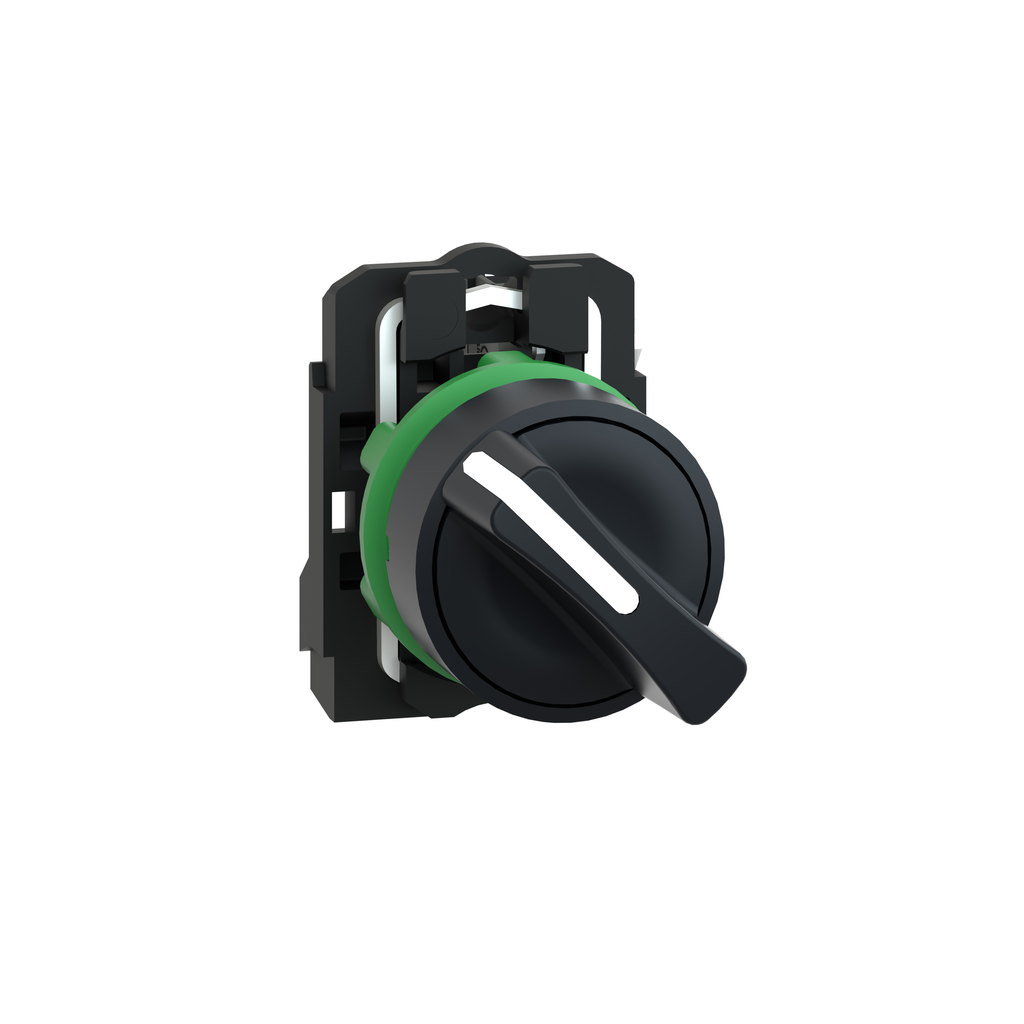

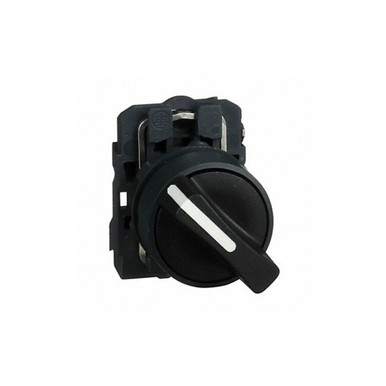

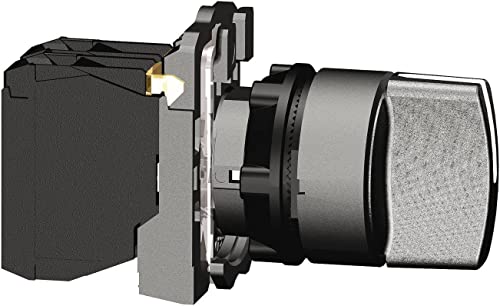

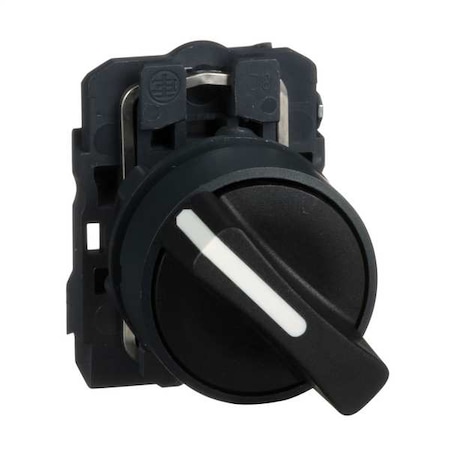

Non-Illum Selectr Swtch, 22mm, 2 Pos, Lever

Non-Illum Selectr Swtch, 22mm, 2 Pos, Leverzoom

Attributes

Key Value
[Ie] Rated Operational .3 A 240 V, AC-15, A600 .
[Ith] Conventional Free.10 A IEC 60947-5-1
[Ui] Rated Insulation V.600 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.6 kV IEC 60947-1
ActionMaintained / Maintained.
Actuatorstay put;Black standard.
Ambient Air Temperature.-40-70 ?C
Ambient Air Temperature.-40-70 ?C
Amperage Rating10
ApprovalsCSA, UL
Basic MaterialPlastic
BezelPlastic Round
Bezel ColorBlack
Bezel ColourBlack
Bezel Materialdark grey plastic, Plas.
BrandSchneider Electric
California Proposition .Di-isodecyl phthalate (.
CamNo Cam
Catalog NumberXB5AD21
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
ColorBlack
ColourBlack
ConnectionScrew clamp terminals,
Contact Configuration1 NO
Contact Form1NO
Contact Operationslow-break
Contact Rating10A @ 600V AC, 10 A @ 6.
Contacts1NO
Contacts Materialsilver alloy (Ag/Ni)
Contacts Type And Compo.1 NO
Contacts Usagestandard contacts
Country of OriginFR - France, France
Current (A)0-6 A
Current Stock37
Depth70 mm
Device Presentationcomplete product
Device Short NameXB5
ECCNEAR99
Electrical Durability1000000 cycles, AC-15, .
Electrical Shock Protec.class II IEC 60536
EnclosureNEMA 4/4X/13
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Switches
Gross Weight0.075 lbs
Head Typestandard
Height42 mm
Ik Degree Of ProtectionIK04 IEC 50102
Insulation600 V 3)EN 60947-1
International ShippingNo
Ip Degree Of ProtectionIP67 IEC 60529 || IP69 .
IP RatingIP67, IP69, IP69K, 65
ItemNon-Illuminated Selecto.
Item NumberXB5AD21
Item Typeselector switch
Key RemovalNo Key
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number590354
Materialdark grey plastic
Max Voltage600 VAC, 600 VDC
Mechanical Durability1000000 cycles
Mercury FreeYes
Mounting Diameter22 mm
Mounting Size (mm)22 mm
MpnXB5AD21
NEMA Contact Rating Des.B600/Q600
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
NEMA Rating1, 2, 3, 4, 4X, 12, 13,.
Net Weight0.043 kg, 0.075 lbs
Number of Positions2
Operating Temperature-40-70 A Degrees C
Operator ColorBlack
Operator Head MaterialPolyamide
Operator Position Infor.2 positions 90?
Operator Profileblack standard handle
Operator TypeKnob
Position2
Positive Openingwithout
Product CertificationsUL || DNV || GL || BV |.
Product Or Component Ty.selector switch
Protective TreatmentTH
Range Of ProductHarmony XB5
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m
RoHSNo
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
Selector FunctionMaintained
Shape Of Screw Headcross Philips no 1 || c.
Shape Of Signaling Unit.round
Shock Resistance30 gn 18 ms) half sine .
Short-Circuit Protection10 A cartridge fuse gG .
Size22 mm, 2.76
SKUZO-G2449955
Special FeaturesPLASTIC,SELECTOR SWITCH
StandardUL LISTED FILE NUMBER E.
StandardsCE Marked, CSA Certifie.
Sub BrandXB5
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch Operation @ Posi.O
Switch Operation @ Posi.X
Switch Operation @ Posi.No Third Position
Switch Operation @ Posi.No Fourth Position
Terminal TypeScrew
Terminals Description I.(13-14)NO
Tightening Torque0.8-1.2 N.m IEC 60947-1
Torque Value0.14 N.m NO changing el.
Toxic Heavy Metal FreeYes
Type Of Operatorstay put
Type of OperatorLever
UNSPSC39122216
UPC785901383659
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXB5AD2118.41In StockSCHNEIDER ELECTRIC18.4 @ 1
RS Delivers609-603523.0041131Schneider Electric23.004 @ 1
thumbzoommostelectric.comXB5AD2134.1517SQUARE D/TELEMECANIQUE34.15 @ 1
thumbzoomZoroG244995537.091172Schneider Electric0.137.09 @ 1
standardelectricsupply.com33535840.39129Schneider Electric40.39 @ 1
thumbzoomgordonelectricsupply.comXB5AD2144.491In Stock10SQUARE D44.49 @ 1
grainger.caTLQXB5AD2145.050778421In StockSCHNEIDER ELECTRIC0.145.05077842 @ 1
thumbzoomNewark66AH760546.2511SCHNEIDER ELECTRIC46.25 @ 1
industrialrefrigerationparts.comXB5AD2147.061In StockSchneider Electric47.06 @ 1
thumbzoommayerelectric.comSQDXB5AD2149.561In StockSQUARE D0.094649.56 @ 1
thumbzoomsimsupply.comZO-G244995549.86137Schneider Electric49.86 @ 1
thumbzoomGalcoXB5AD21-SQD50.4819Square D0.07550.48 @ 1
thumbzoomblackhawksupply.comXB5AD2150.51In StockSquare D50.5 @ 1
thumbzoomcrescentelectric.com1938463.81120Schneider Electric63.81 @ 1
thumbzoomNational Supply Network6953405564.721In StockSchneider Electric64.72 @ 1
Future Electronics302841973.476123In StockSchneider Electric73.47612 @ 3
thumbzoomRaptor SuppliesAJ2JJJ77.64465151In StockSCHNEIDER ELECTRIC77.6446515 @ 1
Graybar9953452787.97616Square D (Schneider Electric)87.976 @ 1
