SCHNEIDER ELECTRIC ZB4BV04

B00CONARA4

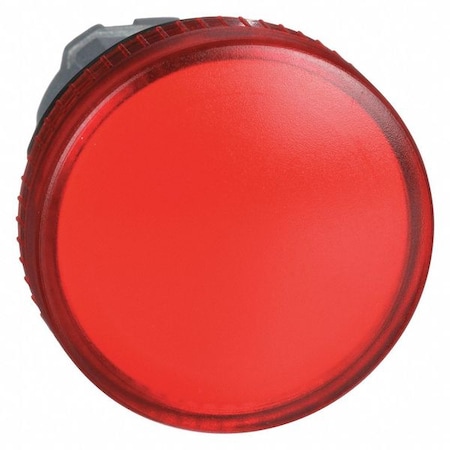

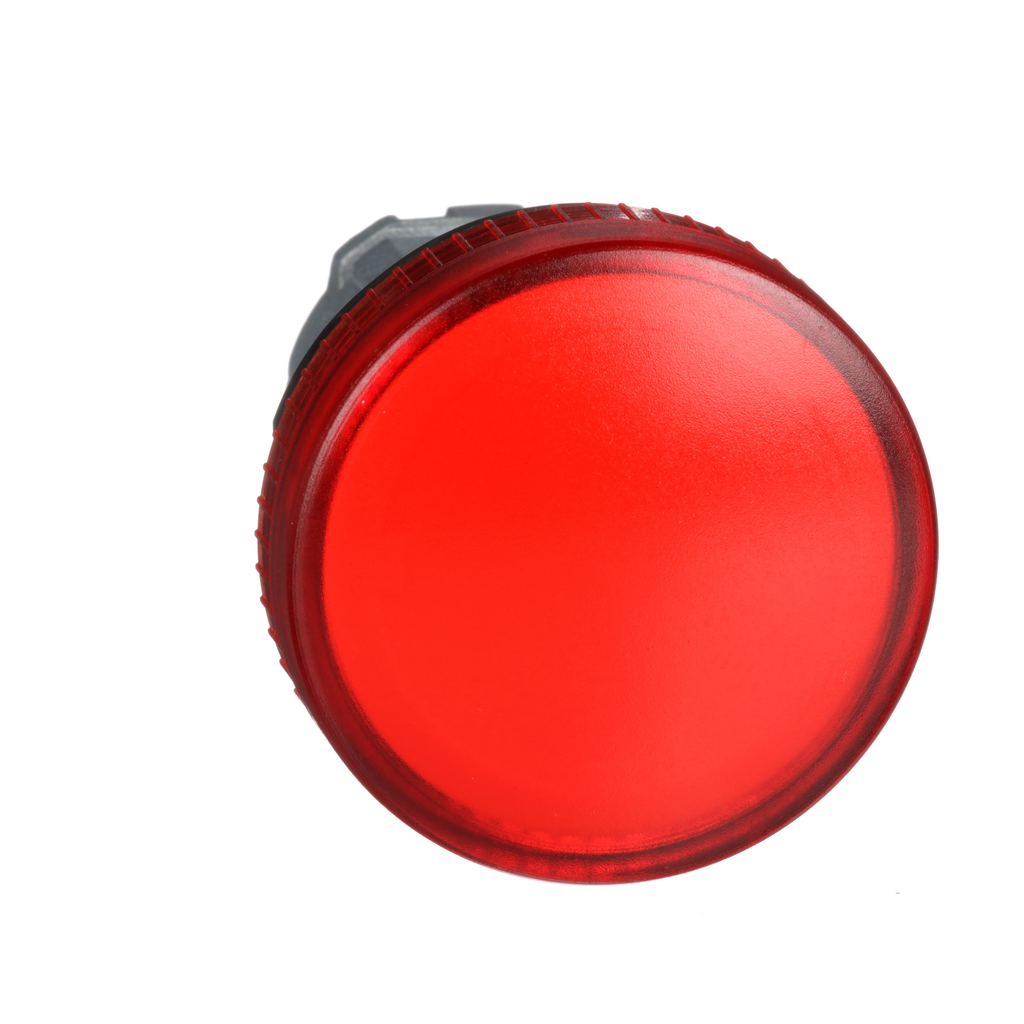

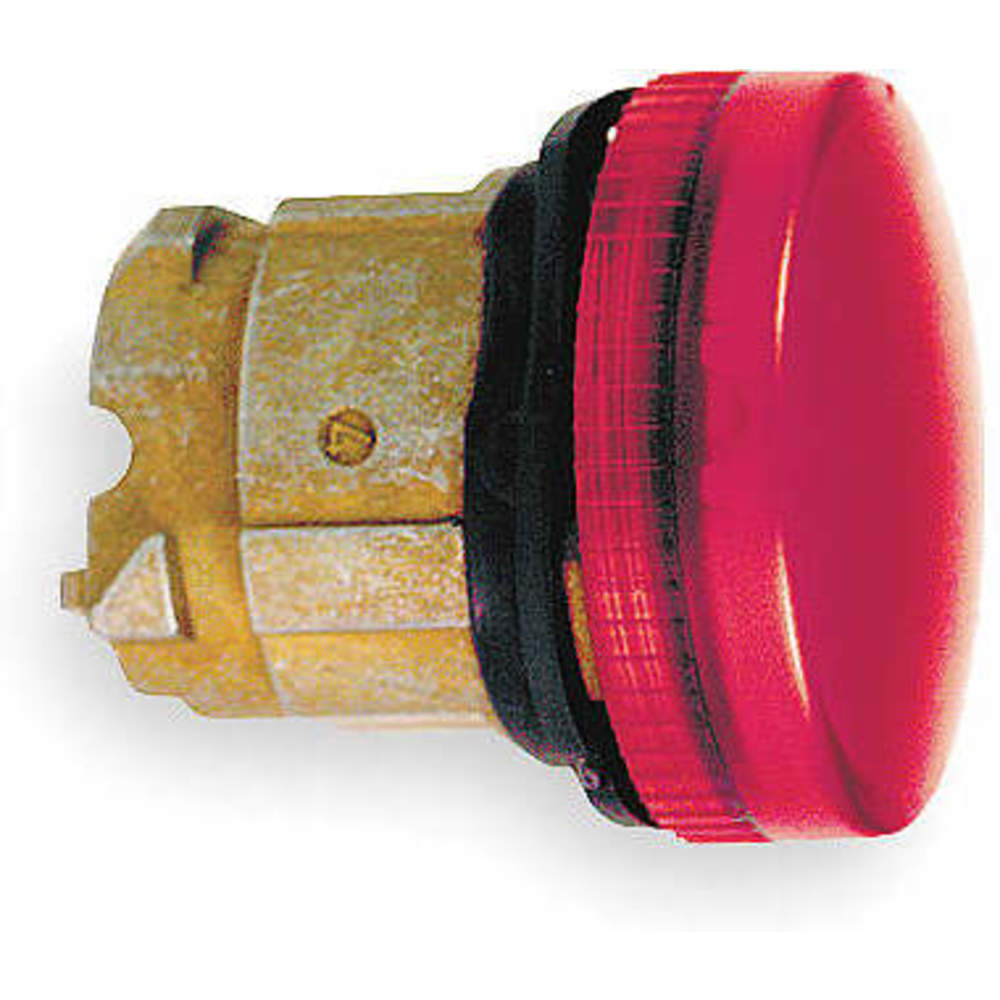

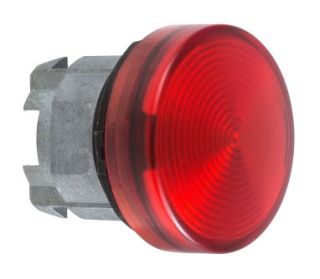

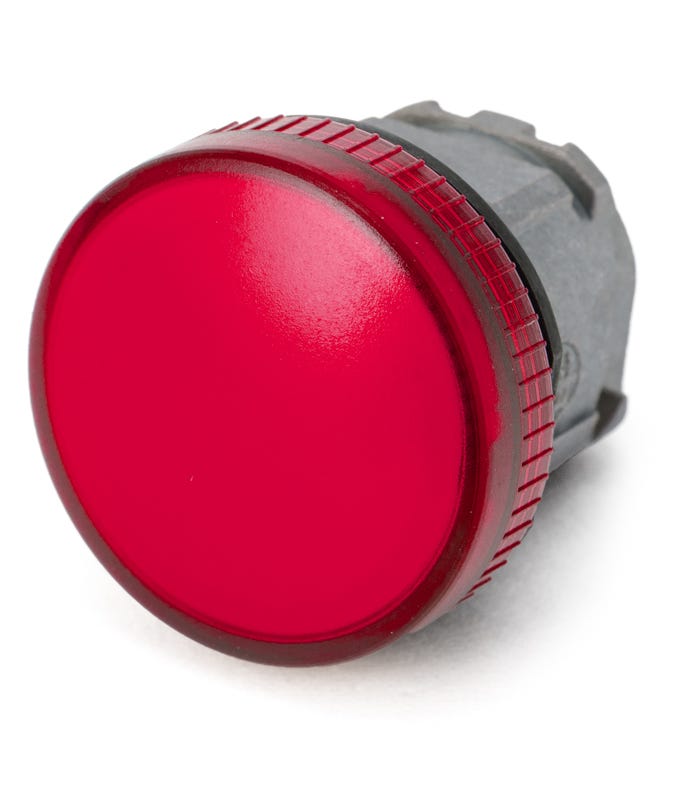

SCHNEIDER ELECTRIC ZB4BV04 Pilot Light

SCHNEIDER ELECTRIC ZB4BV04 Pilot Lightzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
Actuator TypePushbutton, Round
Ambient Air Temperature.-40-55 ?C
Ambient Air Temperature.-40-70 ?C, -40-70?C
ApplicationBA 9s
Basic MaterialMetal
Bezel Materialchromium plated metal
Body MaterialChrome Plated Metal
BrandSchneider Electric
Cad Overall Depth31 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Cap/Operator Or Lens Co.Red
Catalog NumberZB4BV04
CategorySwitches
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
ColorRed
Color FamilyRed
ColourRed
ConditionNew
Country of OriginFR - France, France
DescriptionHARMONY, 22MM PUSH BUTT.
Detailed DescriptionConfigurable Switch Bod.
Device Presentationbasic element
Device Short NameZB4
Digi-Key Part Number4008-ZB4BV04-ND
ECCNEAR99
Electrical Composition .P3 front mounting BA 9s.
EnclosureNEMA 1/2/3/4/4X/13
Environmental ConditionsIP 65
Environmental DisclosureENVPEP1808008EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony XB4 / XB5 Family
Family SeriesSquare D Miscellaneous
For Use WithZB4BV, Schneider BA9 Li.
Gross Weight0 lbs
Gtin785901354208
Head Typestandard
IEC RatingEN/IEC 60947-1; EN/IEC
Ik Degree Of ProtectionIK06 IEC 50102
IlluminationNon-Illuminated
IndicatorRED,RED
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 .
IP Rating66, 67, 69, 69K
ItemPilot Light Head
Item NumberZB4BV04
Item Typehead for pilot light
Lamp TypeIncandescent ; LED ; Ne.
Lens ColorRed
Lens MaterialPlastic
Lens TypeSmooth
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.ZB4BV04
Manufacturer Standard L.8 Weeks
MaterialChrome, chromium plated.
Mercury FreeYes
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting Size22 mm
Mounting TypeFlush
MpnZB4BV04
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
Nema RatingNema 1
NEMA Rating13, 4X
Net Weight0 lbs, 0.027 kg
Operating Temperature-40-55 A Degrees C
Operator Additional Inf.with plain lens
Operator ShapeRound
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Primary TypeIndicator Part
Product CompatibilityBA 9s
Product HeaderLED Pilot Light
Product Or Component Ty.head for pilot light
Product StatusActive
Product TypePilot Light Head
Protective TreatmentTH
Range Of ProductHarmony XB4
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
RequiresContact Block(s)
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m,.
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
SeriesHarmony XB4, Harmony XB.
ShapeRound
Shape Of Signaling Unit.Round
Shock Resistance30 gn 18 ms) half sine .
Size22 mm, 0.87
Special Featureschromium plated metal, .
StandardUL LISTED FILE NUMBER E.
StandardsJIS C8201-5-1 || IEC 60.
Sub BrandZB4
Suggested Lamp TypeMfr. Series BA9 Lamp Mo.
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
TypeMaintained, Cap
UNSPSC39122216
Upc785901354208
UPC785901354208
UPC Code785901354208
Use WithBA9s Incandescent Bulb,.
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comZB4BV043.54143Schneider Electric3.54 @ 1
Graybar994856494.793611Square D (Schneider Electric)4.7936 @ 1
thumbzoommostelectric.comZB4BV045.051In StockSQUARE D/TELEMECANIQUE5.05 @ 1
thumbzoomZoroG25284165.891In StockSchneider Electric0.015.89 @ 1
thumbzoomkempstoncontrols.co.ukZB4-BV046.39124216Schneider6.391242 @ 1
RS Delivers330-94676.5641105Schneider Electric6.564 @ 1
thumbzoomgordonelectricsupply.comZB4BV046.791In Stock10SQUARE D6.79 @ 1
thumbzoomindustrialrefrigerationparts.comZB4BV046.921In StockSquare D2.06.92 @ 1
thumbzoomGalcoZB4BV04-SQD7.061In StockSquare D7.06 @ 1
thumbzoommayerelectric.comSQDZB4BV047.41In StockSQUARE D0.05947.4 @ 1
us.rs-online.com700070007.6214Schneider Electric7.62 @ 1
grainger.caTLQZB4BV047.845962861In StockSCHNEIDER ELECTRIC0.017.84596286 @ 1
Grainger6HP788.21930SCHNEIDER ELECTRIC8.2 @ 1
thumbzoomcrescentelectric.com1560588.8712Schneider Electric8.87 @ 1
thumbzoomDigi-Key1661291510.01122Schneider Electric10.01 @ 1
thumbzoomsustainablesupply.comC121185910.191In StockSchneider Electric0.0110.19 @ 1
thumbzoomRaptor SuppliesAG7EQP14.302081In StockSCHNEIDER ELECTRIC14.30208 @ 1
AmazonTPB000ONMOFM14.531In Stock3Schneider Electric14.53 @ 1
thumbzoomNational Supply Network6967101419.221In StockSchneider Electric19.22 @ 1
thumbzoomNewark17C842865.671In StockSCHNEIDER ELECTRIC65.67 @ 1
