Description:

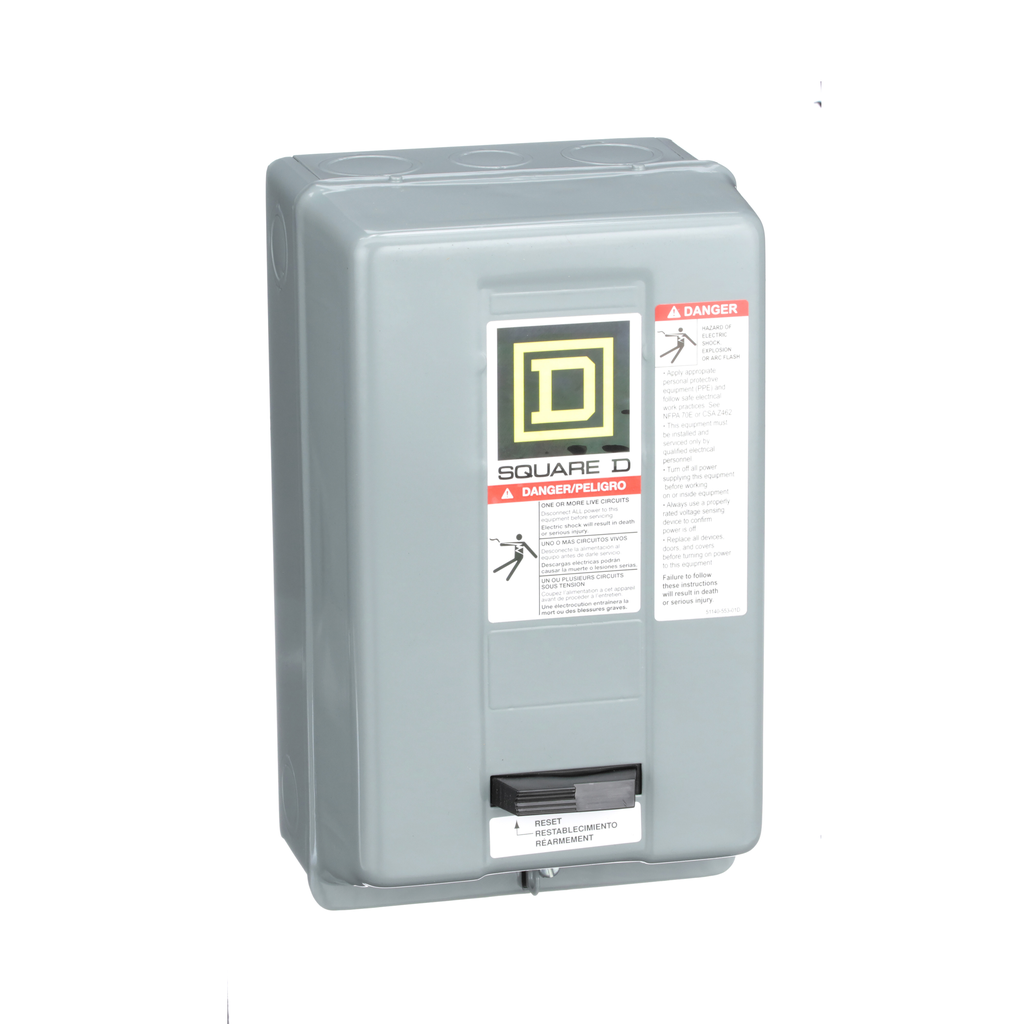

Shop SQUARE D at Mayer. Nonreversing magnetic starter, Size 00, 9 A, 3P, 110/120 VAC 50/60 Hz coil, Motor Logic SSOLR, NEMA 1
Attributes
| Key ^ | Value |
|---|---|
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| [Ue] Rated Operational Voltage | 600 V AC |
| Auxiliary Contact Composition | without |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Control Circuit | separate control circuit |
| Control Type | no control units |
| Depth | 141 mm |
| Electrical Connection | screw clamp terminals |
| Eu Rohs Directive | Not compliant |
| Height | 254 mm |
| Line Rated Current | 9 A |
| Local Signalling | without pilot light |
| Motor Starter Type | non reversing |
| Nema Degree Of Protection | NEMA 1 painted sheet steel |
| Nema Size | 00 |
| Phase | 3 phase |
| Poles Description | 3P |
| Product Certifications | UL Listed || CSA || NEMA |
| Product Or Component Type | motor starter |
| Pvc Free | Yes |
| Range Of Product | S |
| Rated Power In Hp | 1.5 HP 200 V AC || 1.5 HP 230 V AC || 2 HP 460 V AC || 2 HP 575 V AC |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Thermal Overload Type | solid state Motor Logic class 10/20 |
| Warranty | 18 months |
| Width | 152 mm |
