TE Connectivity 1658620-9

B00KSNRH14

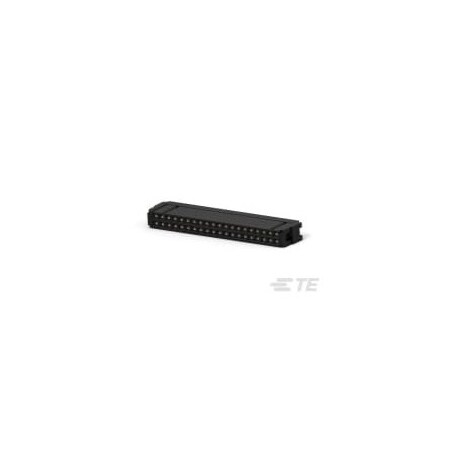

TE Connectivity Part Number 1658620-9

TE Connectivity Part Number 1658620-9zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
Alternate Part No.571-1658620-9
AngleStraight
ApplicationWire-to-Board
Base Product Number1658620
BrandTE Connectivity / AMP
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width6.1?mm?[?.2402?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold Over Nickel, Gold
Contact TypeForked, Socket
Country of Origin (subj.China
Current Rating1 A
Fastening Type-
FeaturesFeed Through
Header TypePin Header
Housing ColorBlack
Housing FinishTin-Lead
Housing MaterialThermoplastic
ManufacturerTE Connectivity
Manufacturer Part No.1658620-9
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting StyleCable
Mounting TypeFree Hanging (In-Line)
Number of Contacts40
Number of Positions40
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length2.18 "
PackageTube
Packaging MethodBox & Tube, Tube
Packaging Quantity60
Panel Mount FeatureWithout
Part StatusActive
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch2.54 mm, 0.100" (2.54mm.
Primary TypeCable Connector
Product CategoryHeaders & Wire Housings
Product HeaderNovo Type AMP-LATCH? Ri.
Product TypeWire Housings
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-LATCH, AMP-LATCH NO.
Special FeaturesMilitary Polarized
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
Termination StyleIDC
TradenameAMP-LATCH
TypeReceptacle Housing, Rec.
UL Flammability RatingUL 94V-0
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1658620-91.5813249TE Connectivity / AMP Brand1.58 @ 60
TE Connectivity1658620-92.066113053TE Connectivity (TE)2.0661 @ 60
WaldomTE CONNECTIVITY AMP BRAND 1658620-92.1560753TE CONNECTIVITY/AMP BRAND2.15 @ 60
thumbzoomNewark36K30152.37160AMP - TE CONNECTIVITY2.37 @ 60
thumbzoomswatee.com1658620-92.691208TE Connectivity2.69 @ 60
RS Delivers782-88682.7160TE Connectivity2.7 @ 60
us.rs-online.com700430712.97160TE Connectivity2.97 @ 60
Digi-Key147765993.005904512003TE Connectivity AMP Connectors3.0059045 @ 60
thumbzoomZoroG9010409283.626060Te Connectivity3.62 @ 60
AmazonTPB00DED753A8.51602TE CONNECTIVITY8.5 @ 60
