AMP 1-1658622-1

B00DEE9J6U

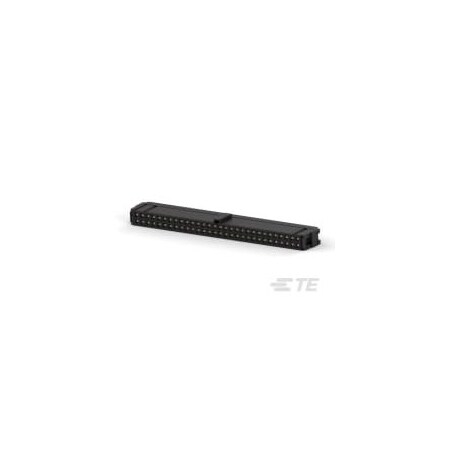

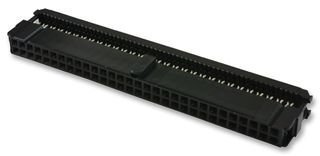

AMP 1-1658622-1 Wire-Board Connector Receptacle 60 Position

AMP 1-1658622-1 Wire-Board Connector Receptacle 60 Positionzoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
AngleStraight
Base Product Number1658622
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact PlatingGold Over Nickel
Contact TypeForked, Socket
Country of Origin (subj.China
Current Rating1 A
DescriptionCONN RCPT 60POS IDC 26-.
Detailed Description60 Position Rectangular.
Digi-Key Part NumberAKC60B-ND
Fastening Type-
FeaturesFeed Through, Polarizin.
Header TypePin Header
Housing ColorBlack
Housing FinishTin-Lead
Housing MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1658622-1
Manufacturer Standard L.17 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts60
Number of Positions60
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length3.18 "
PackageBulk
Packaging MethodBox & Tube, Tube
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch0.100" (2.54mm), 2.54 m.
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
Special FeaturesMilitary Polarized
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL Flammability RatingUL 94V-0
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark73K62082.671228AMP - TE CONNECTIVITY2.67 @ 25
Power and Signal Group1-1658622-13.01360025TE Connectivity3.013 @ 600
WaldomTE CONNECTIVITY AMP BRAND 1-1658622-13.12501795TE CONNECTIVITY/AMP BRAND3.12 @ 50
Future Electronics10002703.144134TE Connectivity3.144 @ 25
Onlinecomponents.com1-1658622-13.33110111TE Connectivity / AMP Brand3.33 @ 25
TE Connectivity1-1658622-14.29671626TE Connectivity (TE)4.2967 @ 25
thumbzoomZoroG8010418655.295025Te Connectivity5.29 @ 50
thumbzoomDigi-Key8254226.1321574TE Connectivity AMP Connectors6.132 @ 25
RS Delivers782-88746.156125TE Connectivity6.156 @ 25
us.rs-online.com700427838.5125TE Connectivity8.5 @ 25
AmazonTPB00DEE9J6U10.261252T-E Connectivity10.26 @ 25
AmazonUNKB00DEE9J6U10.26125T-E Connectivity10.26 @ 25
