1-1658622-2

B00LQQM5N2

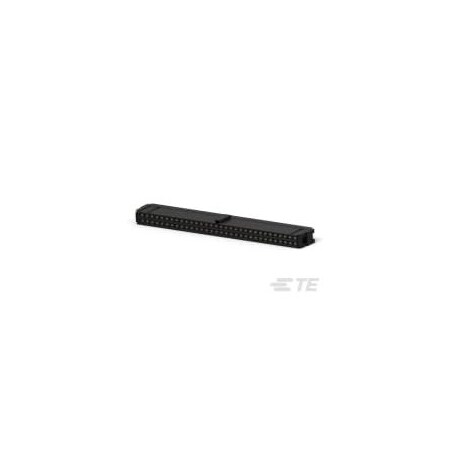

TE CONNECTIVITY / AMP 1-1658622-2 WIRE-BOARD CONNECTOR RECEPTACLE 64POS, 2.54MM (10 pieces)

TE CONNECTIVITY / AMP 1-1658622-2 WIRE-BOARD CONNECTOR RECEPTACLE 64POS, 2.54MM (10 pieces)zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
Agency/StandardCSA, UL
Alternate Part No.571-1-1658622-2
AngleStraight
BrandTE Connectivity / AMP
Cable TerminationIDC
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Length85.85?mm?[?3.3799?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeConnector Assembly, Rec.
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact DesignTuning Fork
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0?in (0.76?m)
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact PlatingGold Over Nickel, Gold
Contact Termination Are.Tin
Contact Termination Are.1.27??m?[?50??in?]
Contact TypeForked, Socket
Country of Origin (subj.Taiwan, Province of Chi.
CSA File NumberLR 7189
Current Rating1 A
Daisy ChainWithout
Ejection LatchesWithout
Fastening Type-
FeaturesFeed Through, Polarizin.
Header TypePin Header
Housing ColorBlack
Housing FinishTin-Lead
Housing MaterialThermoplastic
Insulation Resistance5000
ManufacturerTE Connectivity
Manufacturer Part No.1-1658622-2
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting StyleCable
Mounting TypeFree Hanging (In-Line)
Number of Contacts64
Number of Positions64
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Operating Voltage250
Overall Length3.38 "
PackagingTube
Packaging MethodBox & Tube, Tube
Packaging Quantity50
Panel Mount FeatureWithout
Part StatusActive
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch2.54 mm, 0.100" (2.54mm.
PolarizationWith
Primary TypeCable Connector
Product CategoryHeaders & Wire Housings
Product HeaderNovo Type AMP-LATCH? Ri.
Product TypeConnector, Wire Housings
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-LATCH NOVO, AMP-LAT.
Special FeaturesMilitary Polarized
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
Termination StyleIDC
TradenameAMP-LATCH
TypeReceptacle Housing, Rec.
UL File NumberE28476
UL Flammability RatingUL 94V-0
UL RatingRecognized
UL Voltage Rating250
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable
Wire/Cable TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Power and Signal Group1-1658622-22.994860010TE Connectivity2.9948 @ 600
Onlinecomponents.com1-1658622-23.4412526TE Connectivity / AMP Brand3.44 @ 10
thumbzoomNewark73K62094.1111730AMP - TE CONNECTIVITY4.1 @ 10
thumbzoomDigi-KeyAKC64B-ND4.174110TE Connectivity AMP Connectors4.174 @ 10
thumbzoomZoroG8010419194.23570010Te Connectivity4.23 @ 5700
TE Connectivity1-1658622-24.270781688TE Connectivity (TE)4.27078 @ 10
us.rs-online.com700427845.17110TE Connectivity5.17 @ 10
RS Delivers782-88835.664110TE Connectivity5.664 @ 10
thumbzoomswatee.com1-1658622-27.161832TE Connectivity7.16 @ 10
AmazonTPB07KWH5X8Y41.431101TE Connectivity / AMP Brand41.43 @ 10
