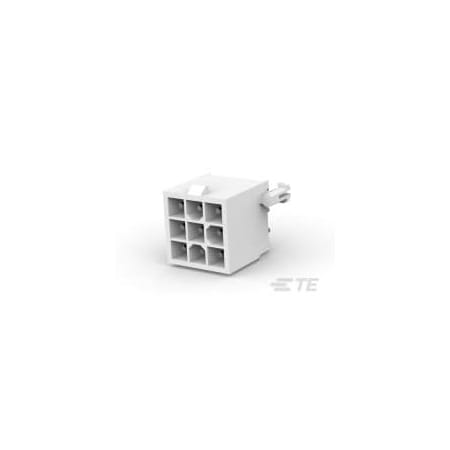

TE CONNECTIVITY 1-770182-0 Mini-Universal MATE-N-LOK 9 Position Three Row Through-Hole Straight Pin Header - 10 item(s)

TE CONNECTIVITY 1-770182-0 Mini-Universal MATE-N-LOK 9 Position Three Row Through-Hole Straight Pin Header - 10 item(s)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number770182
CategoryConnectors, Interconnec.
Centerline (Pitch)4.14?mm?[?.162?in?]
Circuit ApplicationPower
ConnectorPrinted Circuit Board, .
Connector Mounting TypeBoard Mount
Connector pinout layout3x3
Connector seriesMini Universal MATE-N-L.
Connector SystemWire-to-Board
Connector TypeHeader
Contact Current Rating .9.5
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Mating-
Contact Length - Post0.175" (4.45mm)
Contact MaterialBrass
Contact Mating Area Pla.Tin
Contact Mating Area Pla.3.81 ? 8.89??m?[?150 ? .
Contact platingtinned
Contact RetentionWithout
Contact ShapeCircular
Contact Termination Are.Tin
Contact TypeMale Pin, Pin
Contacts pitch4.14mm
Country of Origin (subj.Mexico
Current rating9.5A
Current Rating (Amps)Varies by Wire Gauge
Electrical mountingTHT
Family NameUniversal MATE-N-LOK Fa.
Fastening TypeLocking Ramp
FeaturesBoard Lock
Glow Wire RatingStandard Part - Not Glo.
Housing ColorWhite
Housing MaterialNylon
Housing TypeReceptacle
Ingress Protection-
Insulation ColorWhite
Insulation Height0.531" (13.50mm)
Insulation MaterialPolyamide (PA), Nylon
Kind of connectormale
Locking systemlatch
ManufacturerTE Connectivity
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeChamfered Edges
Mechanical mountingon PCBs,
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts9
Number of pins9
Number of Positions9
Number of Positions Loa.All
Number of Power Positio.9
Number of Rows3
Number of Signal Positi.0
Operating Temperature-20?C ~ 85?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage600
Overall Contact Length-
PackageBulk
Packaging MethodBag
Panel Mount FeatureWithout
Part StatusActive
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeBoardlock
Pitch4.14 mm (0.163")
Pitch - Mating0.163" (4.14mm)
Primary TypeSoft Shell
Product TypeHeader
Rated voltage600V
Row Spacing - Mating0.163" (4.14mm)
Row-to-Row Spacing4.14?mm?[?.163?in?]
SealableNo
SeriesMini-Universal MATE-N-L.
ShroudingShrouded - 4 Wall
Spatial orientationstraight
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Post3.69?mm?[?.145?in?]
TypeHeader
Type of connectorwire-board
UL Flammability RatingUL 94V-0
Voltage Rating600VAC
