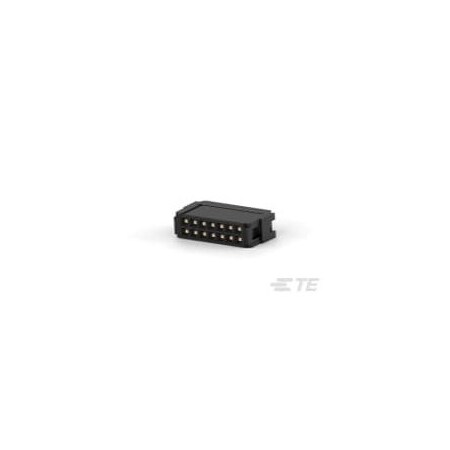

TE CONNECTIVITY / AMP 1658620-2 WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM (10 pieces)

TE CONNECTIVITY / AMP 1658620-2 WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM (10 pieces)zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
AngleStraight
Base Product Number1658620
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width6.1?mm?[?.2402?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold Over Nickel
Contact TypeForked, Socket
Country of Origin (subj.China
Current Rating1 A
DescriptionCONN RCPT 14P IDC 26-28.
Detailed Description14 Position Rectangular.
Digi-Key Part NumberASC14H-ND
Fastening Type-
FeaturesFeed Through
Header TypePin Header
Housing ColorBlack
Housing MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658620-2
Manufacturer Standard L.17 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts14
Number of Positions14
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length0.980 "
PackageTube
Packaging MethodBox & Tube, Tube
Packaging Quantity60
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 "
Pitch0.100" (2.54mm), 2.54 m.
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
Special FeaturesMilitary Polarized
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL Flammability RatingUL 94V-0
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet1658620-20.88460236TE Connectivity0.884 @ 60
Onlinecomponents.com1658620-21.0513808TE Connectivity / AMP Brand0.94 @ 60
TE Connectivity1658620-21.1099110224TE Connectivity (TE)1.1099 @ 50
RS Delivers164-39531.1616150TE Connectivity1.1616 @ 50
thumbzoomNEP Electronics1658620-21.17811080050TE Connectivity1.1781 @ 10800
Future Electronics17591411.2841897TE Connectivity1.284 @ 50
thumbzoomNewark03M58741.4142050AMP - TE CONNECTIVITY1.41 @ 100
thumbzoomDigi-Key8254251.67856111709TE Connectivity AMP Connectors1.67856 @ 50
thumbzoomZoroG3010409311.76050Te Connectivity1.7 @ 60
us.rs-online.com700857051.89972050TE Connectivity1.89 @ 9720
AmazonTPB07KWJNF8440.951501TE Connectivity / AMP Brand40.95 @ 50
