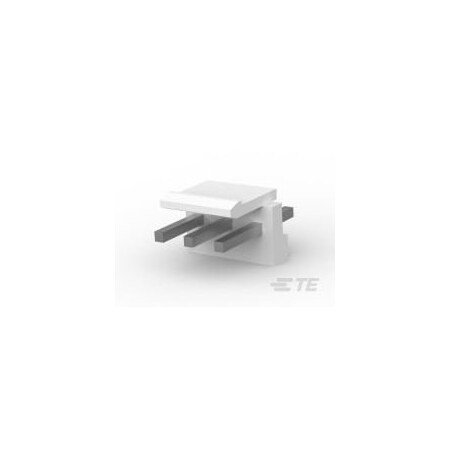

TE CONNECTIVITY / AMP 1-1318300-2 WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM (100 pieces)

TE CONNECTIVITY / AMP 1-1318300-2 WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM (100 pieces)zoom

Attributes

Key Value
Centerline (Pitch)3.96?mm?[?.156?in?]
Circuit ApplicationPower
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector SystemWire-to-Board
Contact Base MaterialBrass
Contact Current Rating .8
Contact LayoutInline
Contact Mating Area Pla.Tin
Contact Mating Area Pla.31.49 ? 70.86??m?[?.8 ?.
Contact RetentionWithout
Contact Termination Are.Tin
Contact TypePin ; Tab, Pin, Tab
Country of Origin (subj.China
For Use WithPlug Housing
Glow Wire RatingStandard Part - Not Glo.
Header TypeUnshrouded
Height8.2 mm[.32 in]
Housing ColorNatural
Housing MaterialPBT GF
Housing StyleLow Profile
Housing TypePlug
Length7.86 mm
Mating AlignmentWith
Number of Contacts2
Number of Positions2
Number of Power Positio.2
Number of Rows1
Operating Temperature R.-25 ? 105??C?[?-13 ? 22.
Operating Voltage250
Packaging MethodTube
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pitch3.96 mm (0.156")
Primary TypeSoft Shell
Product TypeHeader
SealableNo
SeriesEP - Economy Power Seri.
TerminationThrough Hole
Termination Method to P.Through Hole - Solder
Termination Post3.7?mm?[?.146?in?]
TypeHeader
UL Flammability RatingUL 94V-0
Width0.421 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future ElectronicsC0129515530.12658850TE Connectivity0.12 @ 6588
WaldomTE CONNECTIVITY AMP BRAND 1-1318300-20.17730550TE CONNECTIVITY/AMP BRAND0.177 @ 305
us.rs-online.com703463630.20797329450TE Connectivity0.20797 @ 3294
TE Connectivity1-1318300-20.2549416315TE Connectivity (TE)0.25494 @ 50
Onlinecomponents.com1-1318300-20.258617003TE Connectivity0.258 @ 61
thumbzoomNewark55M34610.27413715AMP - TE CONNECTIVITY0.274 @ 50
thumbzoomZoroG4009381840.29329450Te Connectivity0.29 @ 3294
RS Delivers863-89902.304150TE Connectivity2.304 @ 50
AmazonTPB00DK08SN88.461502TE Connectivity8.46 @ 50
