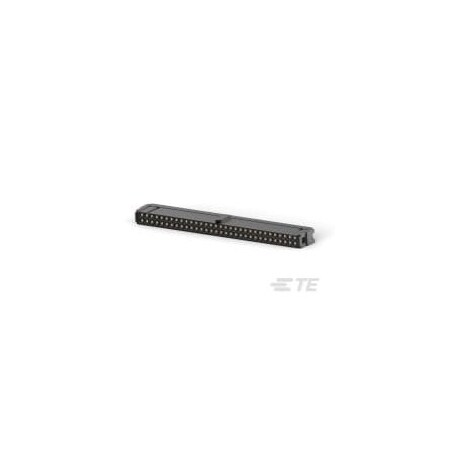

TE CONNECTIVITY / AMP 1-1658621-2 WIRE-BOARD CONNECTOR RECEPTACLE 64POS, 2.54MM (500 pieces)

TE CONNECTIVITY / AMP 1-1658621-2 WIRE-BOARD CONNECTOR RECEPTACLE 64POS, 2.54MM (500 pieces)zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
Agency/StandardCSA, UL
AngleStraight
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Length85.85?mm?[?3.3799?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeConnector Assembly
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact DesignTuning Fork
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold Over Nickel
Contact Termination Are.Tin
Contact Termination Are.1.27??m?[?50??in?]
Contact TypeSocket
Country of Origin (subj.Taiwan, Province of Chi.
CSA File NumberLR 7189
Current Rating1 A
Daisy ChainWithout
Ejection LatchesWithout
Header TypePin Header
Housing ColorBlack
Housing FinishTin-Lead
Housing MaterialThermoplastic
Insulation Resistance5000
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Number of Contacts64
Number of Positions64
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Operating Voltage250
Overall Length3.38 "
Packaging MethodBox & Tube, Tube
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch2.54 mm (0.100")
PolarizationWith
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product TypeConnector
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-LATCH NOVO Series
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL File NumberE28476
UL Flammability RatingUL 94V-0
UL RatingRecognized
UL Voltage Rating250
Wire Size.08 ? .15, 28 ? 26, 158.
Wire/Cable TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-1658621-22.4517108TE Connectivity / AMP Brand2.45 @ 500
TE Connectivity1-1658621-23.338961690TE Connectivity (TE)3.33896 @ 500
Future Electronics49863943.408600500TE Connectivity3.408 @ 600
thumbzoomNEP Electronics1-1658621-23.52055700500TE Connectivity3.5205 @ 5700
thumbzoomNewark79Y01223.661754AMP - TE CONNECTIVITY3.66 @ 500
thumbzoomZoroG4010416924.850500Te Connectivity4.8 @ 500
us.rs-online.com700430688.0650500TE Connectivity8.06 @ 500
AmazonTPB00DED74FO12.1715002TE CONNECTIVITY / AMP12.17 @ 500
AmazonSCB07KWHK4PR69.681500TE Connectivity / AMP69.68 @ 500
