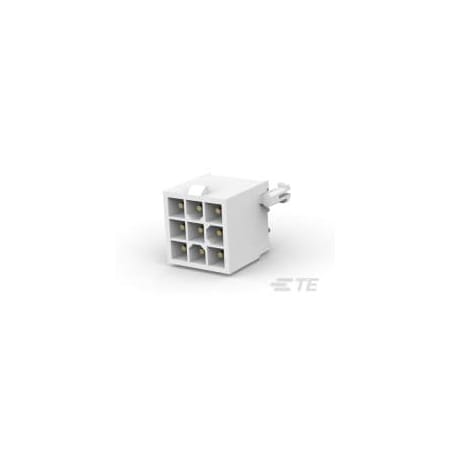

TE CONNECTIVITY / AMP 1-770182-1 PLUG & SOCKET CONN, HEADER, 9POS, 4.14MM (100 pieces)

TE CONNECTIVITY / AMP 1-770182-1 PLUG & SOCKET CONN, HEADER, 9POS, 4.14MM (100 pieces)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number770182
CategoryConnectors, Interconnec.
Centerline (Pitch)4.14?mm?[?.162?in?]
Circuit ApplicationPower
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector TypeHeader
Contact Current Rating .9.5
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Mating-
Contact Length - Post0.175" (4.45mm)
Contact MaterialBrass
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?30??in?]
Contact RetentionWithout
Contact ShapeCircular
Contact Termination Are.Tin
Contact TypeMale Pin, Pin
Country of Origin (subj.United States
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 9POS 4.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA32464-ND
Fastening TypeLocking Ramp
FeaturesBoard Lock
Glow Wire RatingStandard Part - Not Glo.
Housing ColorWhite
Housing MaterialNylon
Housing TypeReceptacle
Ingress Protection-
Insulation ColorWhite
Insulation Height0.531" (13.50mm)
Insulation MaterialPolyamide (PA), Nylon
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-770182-1
Manufacturer Standard L.6 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeChamfered Edges
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions9
Number of Positions Loa.All
Number of Power Positio.9
Number of Rows3
Number of Signal Positi.0
Operating Temperature-20?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage600
Overall Contact Length-
PackageBulk
Packaging MethodBag
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeBoardlock
Pitch - Mating0.163" (4.14mm)
Product StatusActive
Product TypeHeader
Row Spacing - Mating0.163" (4.14mm)
Row-to-Row Spacing4.14?mm?[?.163?in?]
SealableNo
SeriesMini-Universal MATE-N-L.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Post3.69?mm?[?.145?in?]
UL Flammability RatingUL 94V-0
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark52K33512.431155AMP - TE CONNECTIVITY2.43 @ 50
Onlinecomponents.com1-770182-12.671985TE Connectivity / AMP Brand2.67 @ 50
TE Connectivity1-770182-13.0126211420TE Connectivity (TE)3.01262 @ 50
WaldomTE CONNECTIVITY AMP BRAND 1-770182-13.4820207TE CONNECTIVITY/AMP BRAND3.48 @ 50
Future Electronics44296503.504150TE Connectivity3.504 @ 50
thumbzoomZoroG5009831383.53160050Te Connectivity3.53 @ 1600
thumbzoomDigi-Key8135713.98111545TE Connectivity AMP Connectors3.981 @ 50
AmazonTPB07KT6QF2648.831505TE Connectivity / AMP Brand48.83 @ 50
