TE Connectivity 5104338-8

B010IIBBI8

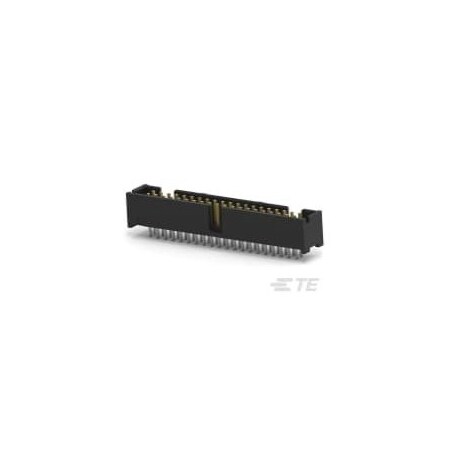

TE Connectivity Part Number 5104338-8

TE Connectivity Part Number 5104338-8zoom

Attributes

Key Value
Applications-
Base Product Number5104338
CategoryConnectors, Interconnec.
Centerline (Pitch)&thin.2.54?mm?[?.1?in?]
Circuit ApplicationSignal
Connector & Contact Ter.Printed Circuit Board
Connector Height&thinsp.8.813?mm?[?.347?in?]
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector StylePlug
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.120" (3.05mm)
Contact MaterialBrass
Contact Mating Area Pla.Gold Flash, Gold
Contact Mating Area Pla.15 ? 15
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER VERT 40POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA33178-ND
Fastening TypePush-Pull
FeaturesKeying Slot
Header TypePin Header
Housing ColorBlack
Housing MaterialGlass Filled PPA
Ingress Protection-
Insulation ColorBlack
Insulation Height0.385" (9.78mm)
Insulation MaterialPolyphthalamide (PPA), .
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5104338-8
Manufacturer Standard L.13 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeCenter, Dual Polarizing.
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions40
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Contact Length-
PackageTube
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeRetention Solder Tails
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
Row-to-Row Spacing&thin.2.54?mm?[?.1?in?]
SeriesAMP-Latch
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationKinked Pin, Solder
Termination Method to P.Through Hole - Solder
UL Flammability RatingUL 94V-0
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomComponent Electronics646B-40AE2.3115Tyco Electronics2.31 @ 1
Onlinecomponents.com5104338-82.411284TE Connectivity / AMP Brand2.41 @ 1
TE Connectivity5104338-83.1131216TE Connectivity (TE)3.113 @ 1
us.rs-online.com720190913.8928025TE Connectivity3.89 @ 280
Verical5104338-83.994040TE Connectivity3.99 @ 40
Mouser571-5104338-84.241222TE Connectivity4.24 @ 1
Newark96Y23375.12402AMP - TE CONNECTIVITY5.12 @ 25
thumbzoomZoroG9009407935.4240In StockTe Connectivity5.42 @ 40
thumbzoomDigi-Key11149165.6641112TE Connectivity AMP Connectors5.664 @ 1
