TE Connectivity 1658621-1

B06WW1MQFP

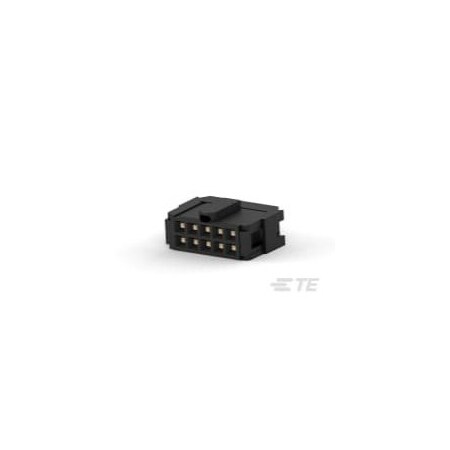

TE CONNECTIVITY 1658621-1 AMP Latch 10 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 25 Item(s)

TE CONNECTIVITY 1658621-1 AMP Latch 10 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 25 Item(s)zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
AngleStraight Degree(s)
Base Product Number1658621
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold Over Nickel
Contact TypeForked, Socket
Country of Origin (subj.China
Current Rating1 A
DescriptionCONN RCPT 10P IDC 26-28.
Detailed Description10 Position Rectangular.
Digi-Key Part NumberAKC10H-ND
Family NameAMP Family
Fastening Type-
FeaturesFeed Through, Polarizin.
Header TypePin Header
Housing ColorBlack
Housing MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658621-1
Manufacturer Standard L.4 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts10
Number of Positions10
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length0.68 "
PackageTube
Packaging MethodBox & Carton
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch2.54 mm, 0.100" (2.54mm)
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH Se.
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL Flammability RatingUL 94V-0
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1658621-10.7110025TE CONNECTIVITY/AMP BRAND0.71 @ 100
Onlinecomponents.com1658621-10.8214750TE Connectivity / AMP Brand0.82 @ 25
TE Connectivity1658621-10.9156124701TE Connectivity (TE)0.9156 @ 25
Avnet1658621-10.9412601TE Connectivity0.94 @ 25
thumbzoomCarlton Bates Company741149187210.99125TE CONNECTIVITY0.99 @ 25
thumbzoomNEP Electronics1658621-11.041110025TE Connectivity1.0411 @ 100
us.rs-online.com700839041.221243TE Connectivity1.22 @ 25
thumbzoomZoroG8010409291.22825Te Connectivity1.22 @ 25
thumbzoomNewark93K24901.2512043AMP - TE CONNECTIVITY1.25 @ 25
RS Delivers454-2362P1.57211634TE Connectivity1.572 @ 25
thumbzoomTME1658621-11.71980TE Connectivity1.7 @ 25
thumbzoomDigi-Key7733751.8206414723TE Connectivity AMP Connectors1.82064 @ 25
AmazonTPB00DECXBNE5.991252TE CONNECTIVITY / AMP5.99 @ 25
