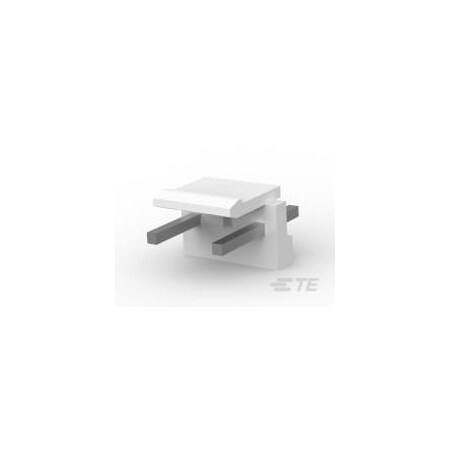

1-1318301-3, Conn Wire to Board HDR 5 POS 3.96mm Solder ST Top Entry Thru-Hole Tube (250 Items)

1-1318301-3, Conn Wire to Board HDR 5 POS 3.96mm Solder ST Top Entry Thru-Hole Tube (250 Items)zoom

Attributes

Key Value
Alternate Part No.571-1-1318301-3
ApplicationWire-to-Board
ApplicationsGeneral Purpose, Indust.
Base Product Number1318301
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)3.96?mm?[?.156?in?]
Circuit ApplicationPower
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialBrass
Contact Current Rating .8
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact LayoutInline
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact Mating Area Pla.Tin
Contact Mating Area Pla.1??m?[?39.37??in?]
Contact PlatingTin
Contact RetentionWithout
Contact ShapeSquare
Contact Termination Are.Tin
Contact Termination Are..8??m?[?31.49 ? 70.86??.
Contact TypeMale Pin, Pin, Tab
Country of Origin (subj.China
Current Rating7.5 A
Current Rating (Amps)7.5A
DescriptionCONN HEADER VERT 5POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA30522-ND
Fastening TypeFriction Lock
Features-
Flammability RatingUL 94 V-0
For Use WithPlug Housing
Glow Wire RatingStandard Part - Not Glo.
Header TypeUnshrouded
Height8.2?mm?[?.32?in?]
Housing ColorNatural
Housing MaterialPolybutylene Terephthal.
Housing TypePlug
Ingress Protection-
Insulation ColorNatural
Insulation Height0.118" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
Length19.74?mm?[?.7772?in?]
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1-1318301-3
Manufacturer Product Nu.1-1318301-3
Manufacturer Standard L.21 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Post Length7.7?mm?[?.3?in?]
Mating RetentionWith
Mating Retention TypeLatch
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions5
Number of Positions Loa.3
Number of Power Positio.5
Number of Rows1
Operating Temperature-25?C ~ 105?C
Operating Temperature R.-25 ? 105??C?[?-13 ? 22.
Operating Voltage250
Overall Contact Length0.567" (14.40mm)
PackageTube
Packaging MethodTube
Packaging Quantity24
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
PCB Thickness (Recommen..063?mm?[?1.6?in?]
Pitch3.96 mm
Pitch - Mating0.156" (3.96mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeader, Headers
Row Spacing - Mating-
SealableNo
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Post3.7?mm?[?.146?in?]
Termination StyleThrough Hole
TypeUnshrouded
UL Flammability RatingUL 94V-0
Voltage Rating250 V, 250VAC
Width10.7?mm?[?.421?in?]
