TE Raychem 1-1318301-4

B07NQSHXW9

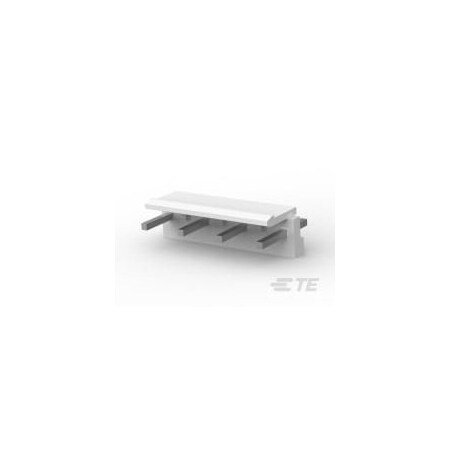

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationPower
ApplicationsGeneral Purpose, Indust.
Base Product Number1318301
CategoryConnectors, Interconnec.
Centerline (Pitch)3.96?mm?[?.156?in?]
Circuit ApplicationPower
ColorNatural
Connection MaterialBrass
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector SystemWire-to-Board
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact Base MaterialBrass
Contact Current Rating .8
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact Mating Area Pla.Tin
Contact Mating Area Pla.1??m?[?39.37??in?]
Contact Plating Thickne.1 ?m
Contact RetentionWithout
Contact ShapeSquare
Contact Termination Are.Tin
Contact TypePin; Tab, Male Pin, Pin.
Current Rating8 A
Current Rating (Amps)7.5A
DescriptionCONN HEADER VERT 7POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA30523-ND
Fastening TypeFriction Lock
FeaturesUnshrouded, -
Flammability RatingUL 94 V-0
For Use WithPlug Housing
Glow Wire RatingStandard Part - Not Glo.
Header TypeUnshrouded
Height8.2 mm
Hole Center to Center3.96 mm
Housing ColorNatural
Housing MaterialPBT GF
Housing TypePlug
Ingress Protection-
Insulation ColorNatural
Insulation Height0.118" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
ItemHeader
Length27.66 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1318301-4
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
MaterialGlass-Filled PBT
Material Flammability R.UL94 V-0
Mating AlignmentWith
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts7
Number of Positions7
Number of Positions Loa.4
Number of Power Positio.7
Number of Rows1
Operating Temperature-25?C ~ 105?C
Operating Temperature R.-25 ? 105??C?[?-13 ? 22.
Operating Voltage250
Overall Contact Length0.567" (14.40mm)
PackageTube
Package Quantity1
Packaging MethodTube
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pitch - Mating0.156" (3.96mm)
Product StatusActive
Product TypeHeader
Row Spacing - Mating-
SealableNo
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Post3.7?mm?[?.146?in?]
UL Flammability RatingUL 94V-0
Voltage Rating250VAC
Width0.421 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics90951510.241836250TE Connectivity0.24 @ 1836
TE Connectivity1-1318301-40.37331849TE Connectivity (TE)0.3733 @ 250
Newark65K06900.3741836250AMP - TE CONNECTIVITY0.374 @ 1000
thumbzoomDigi-Key6866880.50331250TE Connectivity AMP Connectors0.5033 @ 250
thumbzoomZoroG100937043261.631250Te Connectivity261.63 @ 250
