TE Raychem 1-1734742-8

B07NQRGV3F

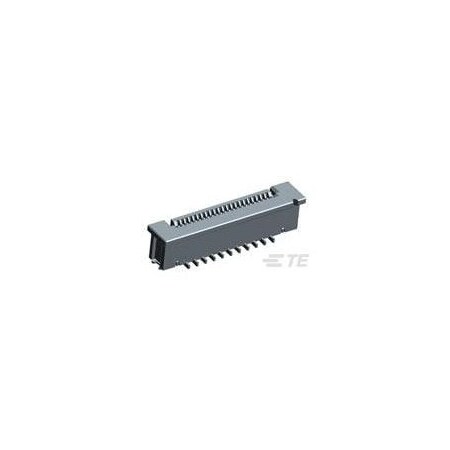

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Accepts Flex Cable Thic..3?mm?[?.012?in?]
Actuation TypeZIF
Actuator ColorBrown
Actuator MaterialThermoplastic
Alternate Part No.571-1-1734742-8
Base Product Number1734742
Cable End TypeStraight or Tapered
CategoryConnectors, Interconnec.
Centerline (Pitch).5?mm?[?.0197?in?]
Circuit ApplicationSignal
ConnectorFlexible Printed Circui.
Connector Height4.15?mm?[?.1633?in?]
Connector Mounting TypeBoard Mount
Connector SystemFlex-to-Board
Connector Width3.8?mm?[?.1496?in?]
Connector/Contact TypeContacts, Vertical - 1 .
Contact Base MaterialPhosphor Bronze
Contact Current Rating ..5
Contact FinishGold
Contact Finish ThicknessFlash
Contact LocationTop Contact
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla..007??m?[?30??in?]
Contact Mating LocationBottom
Contact PlatingMatte Tin
Contact TypeSocket
Country of Origin (subj.China
Current Rating0.5 A
Current Rating (Amps)0.5A
DescriptionCONN FFC VERT 18POS 0.5.
Detailed Description18 Position FFC, FPC Co.
Digi-Key Part NumberA100236TR-ND - Tape & R.
FeaturesSolder Retention, Zero .
FFC, FCB Thickness0.30mm
Flat Flex TypeFFC, FPC
FPC Actuator TypeStuffer (Plunger Style)
Height Above Board0.163" (4.15mm)
Housing ColorBlack
Housing MaterialThermoplastic, Glass Fi.
Insertion Force TypeZero Insertion Force (Z.
Locking FeatureSlide Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1-1734742-8
Manufacturer Product Nu.1-1734742-8
Manufacturer Standard L.18 Weeks
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Cycles-
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeSurface Mount
Number of Positions18
Number of Rows1
Operating Temperature-20?C ~ 85?C
Operating Temperature R.-20 ? 85??C?[?-4 ? 185?.
PackageTape & Reel (TR)
PackagingReel
Packaging MethodTape
Packaging Quantity1000
PCB Connector Assembly .PCB Mount Receptacle
PCB Contact Termination.Gold
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWith
Pitch0.020" (0.50mm), 0.5 mm
Product CategoryFFC & FPC Connectors
Product StatusActive
Product TypeBoard Mount
SealableNo
Series-
Temperature Range- 20 C to + 85 C
TerminationSolder
Termination Method to P.Surface Mount
Termination StyleSMD
Voltage Rating50V, 50 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-1734742-80.66250301TE Connectivity0.66 @ 250
thumbzoomZoroG4010406640.877000114Te Connectivity0.87 @ 7000
TE Connectivity1-1734742-80.884516249TE Connectivity (TE)0.8845 @ 1
thumbzoomNewark21R17781.25100080TE CONNECTIVITY1.25 @ 1000
Mouser571-1-1734742-81.2911293TE Connectivity1.29 @ 1
Allied ElectronicsE53302021.817000114TE Connectivity1.81 @ 7000
thumbzoomDigi-Key21805091.83611871TE Connectivity AMP Connectors1.836 @ 1
thumbzoomswatee.com1-1734742-82.021442TE Connectivity2.02 @ 1
