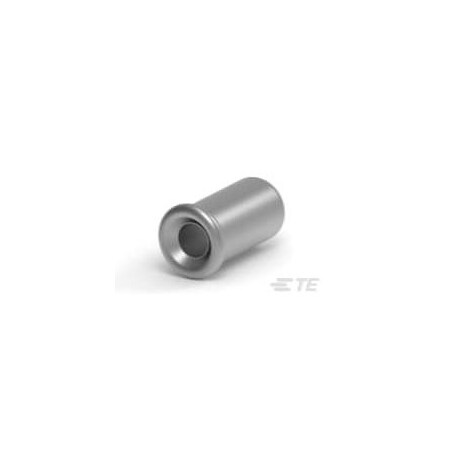

TE Connectivity 2-5332070-3

B00KSOK9LI

TE Connectivity Part Number 2-5332070-3

TE Connectivity Part Number 2-5332070-3zoom

Attributes

Key Value
Accepts Pin Diameter0.037" ~ 0.040" (0.94mm.
Accepts Square Pin Size-
Board Thickness-
Circuit ApplicationPower & Signal
Connector SystemCable-to-Board
Contact Base MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialBeryllium Copper
Contact Mating Area Pla.30 ?in
Contact Spring Plating .30 ?in
Contact Transmits (Typi.Signal (Data)/Power
Contact TypeSocket
FeaturesClosed Bottom
Flange Diameter0.089" (2.26mm)
Hole Size (Recommended).072 in
Insertion Force-
Insertion MethodHand/Semi-Automatic
Length - Overall0.143" (3.63mm)
Mating Pin Diameter Ran..037 to .04 in
MfrTE Connectivity AMP Con.
Mounting Hole Diameter0.072" (1.83mm)
Operating Temperature-65?C ~ 126?C
Operating Temperature R.-65 to 125 ?C
Part StatusActive
PCB Thickness (Recommen..031 to .125 in
Pin Hole Diameter-
Product TypeContact
ProfileZero
Sleeve MaterialCopper
Sleeve Plating MaterialTin
Sleeve StyleClosed Bottom
Socket Depth0.130" (3.30mm)
Socket Length.143 in
Socket TypeDiscrete
Spring MaterialBeryllium Copper
Tail Diameter-
Tail TypeNo Tail
TerminationSolder
Termination Method to P.Through Hole - Press-Fit
Termination Method to W.Solder
Wire/Cable Size19 AWG
Wire/Cable TypeDiscrete Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Arrow2-5332070-30.05911265TE Connectivity0.059 @ 1000
WaldomTE CONNECTIVITY AMP BRAND 2-5332070-30.415067500TE CONNECTIVITY/AMP BRAND0.4 @ 1000
HotendaH16139910.45712110737TE Connectivity AMP Connectors0.45712 @ 1000
Newark17R77290.524100001000AMP - TE CONNECTIVITY0.524 @ 10000
Onlinecomponents.com2-5332070-30.626182500TE Connectivity / AMP Brand0.626 @ 1000
thumbzoomZoroG001025962106.511000Te Connectivity106.5 @ 1000
