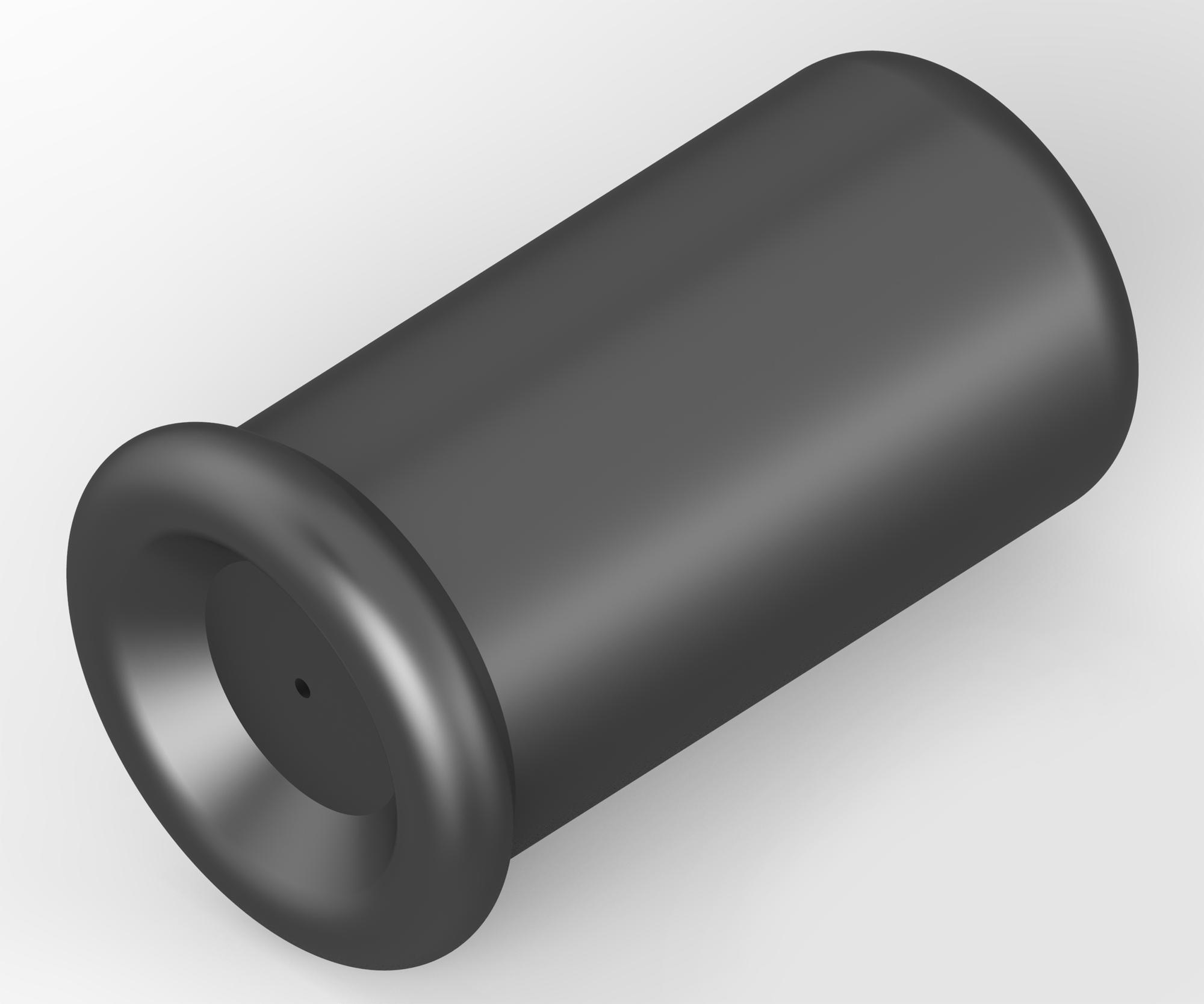

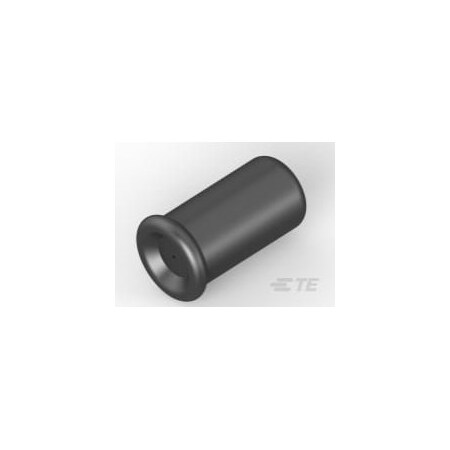

TE Raychem 2-5332070-5

B07NQML5RX

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Accepts Pin Diameter0.030" ~ 0.033" (0.76mm.
Accepts Square Pin Size-
Base Product Number5332070
Board Thickness-
CategoryConnectors, Interconnec.
Circuit ApplicationPower & Signal
ConnectorPrinted Circuit Board
Connector SystemCable-to-Board
Contact Base MaterialBeryllium Copper
Contact Current Rating .6.5
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialBeryllium Copper
Country of Origin (subj.United States
DescriptionCONN PIN RCPT .030-.033.
Detailed DescriptionPin Receptacle Connecto.
Digi-Key Part NumberA32387-ND
FeaturesOpen Bottom
Flange Diameter0.089" (2.26mm)
Hole Size (Recommended)1.83?mm?[?.072?in?]
Insertion Force-
Length - Overall0.143" (3.63mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-5332070-5
Manufacturer Standard L.16 Weeks
Mating Pin Diameter Ran..76 ? .84?mm?[?.03 ? .0.
MfrTE Connectivity AMP Con.
Mounting Hole Diameter0.072" (1.83mm)
Operating Temperature-65?C ~ 126?C
Operating Temperature R.-65 ? 125??C?[?-85 ? 25.
PackageBulk
Part StatusActive
Pin Hole Diameter-
Product StatusActive
SealableNo
SealantNo
Series4
Sleeve StyleOpen Bottom
Socket Depth0.130" (3.30mm)
Socket Length3.63?mm?[?.143?in?]
Tail Diameter-
Tail TypeNo Tail
TerminationSolder
Termination Method to P.Through Hole - Press-Fit
Termination Method to W.Solder
Wire Size.41 ? .518, 20 ? 21

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TE Connectivity2-5332070-50.476126877TE Connectivity (TE)0.476 @ 1
Future Electronics27753020.4804810000249TE Connectivity0.48048 @ 10000
thumbzoomNewark17R77300.54816400AMP - TE CONNECTIVITY0.548 @ 1
HotendaH16139860.72111464TE Connectivity AMP Connectors0.72 @ 1
Onlinecomponents.com2-5332070-50.7219850TE Connectivity / AMP Brand0.72 @ 1
thumbzoomZoroG7010260090.7810000128Te Connectivity0.78 @ 10000
thumbzoomDigi-Key8134960.9110079TE Connectivity AMP Connectors0.9 @ 1
RS Delivers821-88611.0321128TE Connectivity1.032 @ 1
Allied ElectronicsE5240985252.20810000249TE Connectivity252.208 @ 10000
