TE Connectivity 787171-5

B010IIO306

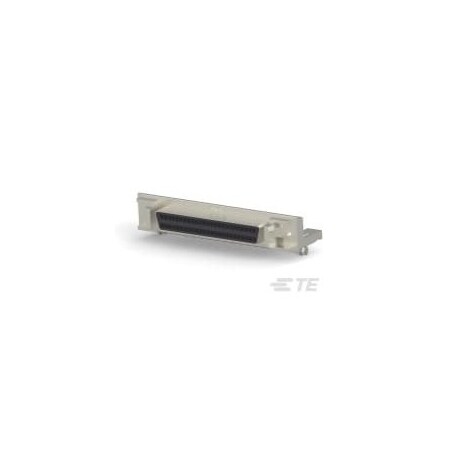

TE Connectivity Part Number 787171-5

TE Connectivity Part Number 787171-5zoom

Attributes

Key Value
Approved StandardsUL E28476
Backset Spacing0.146" (3.71mm)
Base Product Number787171
CategoryConnectors, Interconnec.
Centerline (Pitch)1.27?mm?[?.05?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle, D-Type
Connector SystemCable-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness-
Contact Form-
Contact MaterialPhosphor Bronze
Contact TypeSignal
Country of Origin (subj.China
Current Rating (Amps)1A
DescriptionCONN D-TYPE RCPT 50POS .
Detailed Description50 Position D-Type Rece.
Dielectric MaterialThermoplastic
Digi-Key Part NumberA3318-ND
FeaturesBoard Lock, Shielded
Flange FeatureHousing/Shell (2-56); L.
Ingress Protection-
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.787171-5
Manufacturer Standard L.16 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Latch
MfrTE Connectivity AMP Con.
Mounting TypeBoard Edge, Through Hol.
Number of Positions50
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTube
Part StatusActive
PCB Mount AlignmentWithout
PCB Mount OrientationRight Angle
PCB Mount RetentionWith
PCB Mount Retention TypeBoardlock
PCB Mounting StyleThrough Hole - Press-Fit
Product StatusActive
ProfileStandard
Row-to-Row Spacing.1 in, 2.54 mm
SealableNo
SeriesAMPLIMITE .050 III
Shell Material, FinishSteel, Nickel Plated
Shell Size, Connector L.0.050 Pitch x 0.100 Row.
Shell TypeFull Metal Shell
TerminationSolder
Termination Method to P.Through Hole - Solder
Voltage Rating30V
Wire Gauge-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 787171-57.3172010TE CONNECTIVITY/AMP BRAND7.31 @ 720
TE Connectivity787171-57.933311711TE Connectivity (TE)7.93331 @ 1
HotendaH8135618.491In StockTE Connectivity AMP Connectors8.49 @ 1
thumbzoomZoroG0010452299.44720In StockTe Connectivity9.44 @ 720
Onlinecomponents.com787171-59.59140In StockTE Connectivity / AMP Brand9.59 @ 140
Newark42AJ68069.671010AMP - TE CONNECTIVITY9.67 @ 10
thumbzoomDigi-Key18383613.1041397TE Connectivity AMP Connectors13.104 @ 1
