TE Connectivity 2289129-1

B096T2MGN4

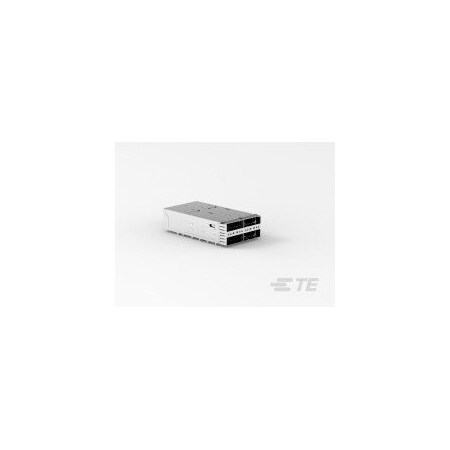

Conn zQSFP+ RCP 152 POS 0.8mm Press Fit RA Thru-Hole 152 Terminal 4 Port Box/Tray

Conn zQSFP+ RCP 152 POS 0.8mm Press Fit RA Thru-Hole 152 Terminal 4 Port Box/Trayzoom

Attributes

Key Value
Base Product Number2289129
Cage MaterialNickel Silver
Cage TypeStacked
CategoryConnectors, Interconnec.
Centerline (Pitch).8?mm?[?.0315?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle with Cage, G.
Connector SystemCable-to-Board
Connector TypezQSFP+
Contact Current Rating ..5
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?30??in?]
Contact Underplating Ma.Tin
Country of Origin (subj.China
Data Rate (Max)25
DescriptionCONN ZQSFP+ RCP CAGE 2X.
Detailed Description152 (38 x 4) Position Z.
Digi-Key Part NumberA125838-ND
EMI Containment Feature.Internal/External EMI S.
EnhancementsStandard
FeaturesBoard Guide, EMI Shield.
For Use With Pluggable .QSFP28 Cable Assembly, .
Form FactorzQSFP+
Heat Sink CompatibleNo
Included LightpipeYes
Lightpipe ConfigurationAll Four Up
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2289129-1
Manufacturer Standard L.15 Weeks
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Ports4
Number of Positions152 (38 x 4), 152
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
PackageTray
Packaging MethodBox & Tray
PCB Contact Termination.Gold
PCB Thickness (Recommen.1.57?mm?[?.062?in?]
Pluggable I/O Applicati.Standard
Port Matrix Configurati.2 x 2
Product StatusActive
Product TypeCage Assembly with Inte.
Rear EONs per Port Colu.3
SealableNo
Series-
Tail Length2?mm?[?.079?in?]
TerminationPress-Fit
Termination Method to P.Through Hole - Press-Fit
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2289129-150.02232TE CONNECTIVITY/AMP BRAND50.02 @ 2
Verical2289129-151.37113TE Connectivity / AMP51.37 @ 1
thumbzoomZoroG70106760673.6418In StockTe Connectivity73.64 @ 18
Newark41AJ670875.0318In StockAMP - TE CONNECTIVITY75.03 @ 10
thumbzoomDigi-Key722170089.016232TE Connectivity AMP Connectors89.016 @ 2
