TE Connectivity / AMP 7-2834006-2

B083ZMJ25K

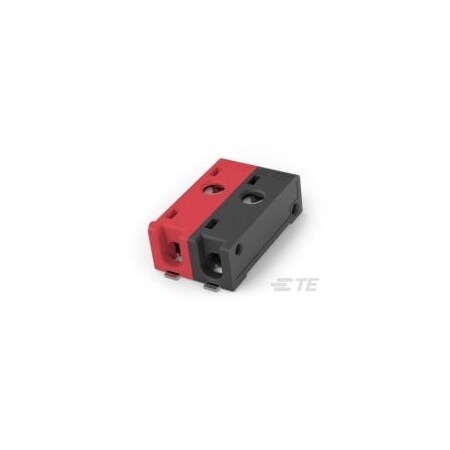

7-2834006-2, Connector Assembly RELEASABLE Poke-in (250 Items)

7-2834006-2, Connector Assembly RELEASABLE Poke-in (250 Items)zoom

Attributes

Key Value
Accepts Wire Insulation.2.1
Agency/StandardUL
Agency/Standard NumberUL 1977
Base Product Number2834006
CategoryConnectors, Interconnec.
Centerline (Pitch)4
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle
Connector SystemWire-to-Board
Connector TypeConnector Assembly, Rec.
Contact Current Rating .6
Contact FinishTin
Contact MaterialCopper Alloy
Contact Termination Are.Matte
Contact Termination Are.Tin-Lead over Nickel
Current Rating (Amps)5A, 6A
Description2P MRPK CONN_RD/BK
Detailed DescriptionSSL Connector 2 Positio.
Digi-Key Part NumberA124899TR-ND - Tape & R.
Fastening Type-
Features-
Glow Wire RatingStandard Part - Not Glo.
Height4.48?mm?[?.176?in?]
Housing ColorBlack, Red, Natural
Housing MaterialResin
Ingress Protection-
Insulation ColorNatural
ItemConnector
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.7-2834006-2
Manufacturer Standard L.16 Weeks
Mating Cycles-
Max. Voltage400V AC
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount, Right An.
Number of Positions2
Operating Temperature-40?C ~ 125?C
Operating Voltage400
PackageTape & Reel (TR)
Packaging MethodTape & Reel
Pitch0.157" (4.00mm)
Product LinePoke-In
Product StatusActive
Product TypeConnector
SealableNo
Series-
SMT CompatibleYes
StandardsUL Listed
StyleBoard to Cable/Wire
Terminal TypeReceptacle
TerminationSolder
Termination Method to P.Surface Mount
UL File NumberE28476
UL Flammability RatingUL 94V-0
Voltage Rating400V
Wire Gauge18 AWG, 20 AWG, 22 AWG
Wire Range22 to 18 AWG
Wire Size18 ? 22

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 7-2834006-20.438002400TE CONNECTIVITY/AMP BRAND0.43 @ 800
TE Connectivity7-2834006-20.5453616134TE Connectivity (TE)0.54536 @ 250
thumbzoomZoroG1059475970.7800250Te Connectivity0.7 @ 800
thumbzoomDigi-Key65688950.95988112229TE Connectivity AMP Connectors0.95988 @ 250
thumbzoomNewark75AJ23991.0511524TE CONNECTIVITY1.05 @ 250
