TE Raychem 1932788-1

B07NQT2LT9

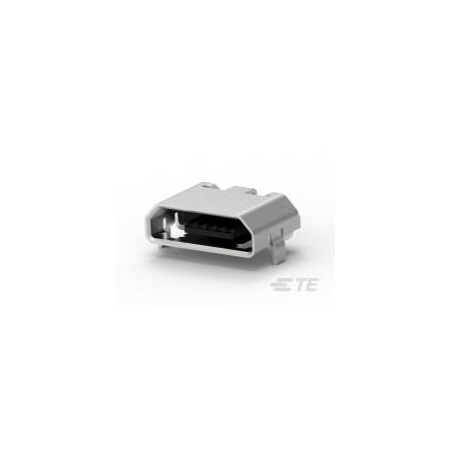

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Base Product Number1932788
CategoryConnectors, Interconnec.
Centerline (Pitch)&thin..65?mm?[?.025?in?]
Connector & Contact Ter.Printed Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle
Connector SystemCable-to-Board
Connector TypeUSB - micro B
Contact Current Rating .1.8
Contact FinishGold
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?29.52??in?]
Contact Termination TypeSurface Mount
Country of Origin (subj.China
Current Rating (Amps)0.5A, 1.5A
DescriptionCONN RCPT USB2.0 MICRO .
Detailed DescriptionUSB - micro B USB 2.0 R.
Digi-Key Part NumberA118088TR-ND - Tape & R.
FeaturesPick and Place
GenderReceptacle
Halogen FreeNo
Housing ColorBlack
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Integral Locking LatchWithout
LEDWithout
Locating PostsWithout
Locking FeatureWithout
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1932788-1
Manufacturer Standard L.12 Weeks
Material Flammability R.UL94 V-0
Mating Cycles10000
Mating Cycles (Max)10000
MfrTE Connectivity AMP Con.
Mounting FeatureHorizontal, Reverse Mou.
Mounting LocationTop
Mounting TypeSurface Mount, Right An.
Number of Contacts5
Number of Ports1
Number of Positions5
Offset0
Operating Temperature-30?C ~ 85?C
Operating Temperature R.-30 ? 85??C?[?-22 ? 185.
OrientationReverse Right Angle
PackageTape & Reel (TR)
Part StatusActive
PCB Connector SeatingOffset
PCB Mount Retention TypeHold-Down
PCB Thickness (Recommen..8 ? 1.?mm?[?.031 ? .03.
Pick & Place CapableYes
Product StatusActive
Product TypeConnector
Series-
Shell Plating FinishMatte
Shell Plating MaterialTin over Nickel
Shell/Shielding MaterialSteel, Stainless
ShieldingUnshielded
SizeMicro
Soldering Temperature (.260??C?[?500??F?]
SpecificationsUSB 2.0
Tail Length?:</s..8?mm?[?.031?in?]
TerminationSolder
Termination MethodSurface Mount
Termination Method to P.Reflow Solder
USB TypeB
USB Version2.0
Voltage - Rated30VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH16540791.32175TE Connectivity AMP Connectors1.32 @ 1
WaldomTE CONNECTIVITY AMP BRAND 1932788-11.4710009054TE CONNECTIVITY/AMP BRAND1.47 @ 1000
thumbzoomZoroG4010260881.7600058Te Connectivity1.7 @ 6000
thumbzoomNewark27W99821.79600055TE CONNECTIVITY1.79 @ 6000
TE Connectivity1932788-12.252122719TE Connectivity (TE)2.252 @ 1
RS Delivers191-79113.5761110TE Connectivity3.576 @ 1
thumbzoomDigi-Key47318223.6121242TE Connectivity AMP Connectors3.6 @ 1
