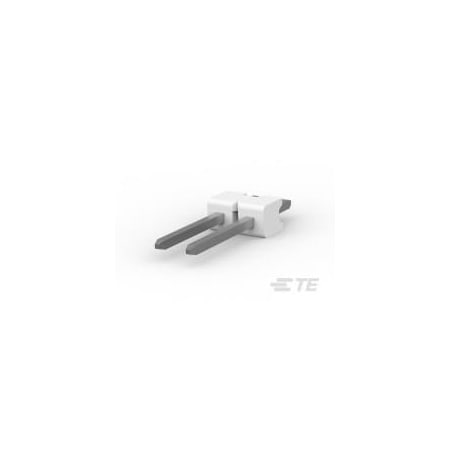

TE Connectivity 3-644456-2

mpn3-644456-2
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 3-644456-2

Brand: TE Connectivity
PartNumber: 3-644456-2
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	3-644456-2
Angle	Straight
Application	Signal, Printed Circuit.
Category	Connectors, Interconnec.
Centerline (Pitch)	2.54?mm?[?.1?in?]
Circuit Application	Signal
Connection Material	Copper Alloy
Connection Type	Through Hole - Solder
Connector	Printed Circuit Board
Connector Height	10.03?mm?[?.395?in?]
Connector Mounting Type	Board Mount
Connector Profile	Narrow
Connector System	Wire-to-Board
Connector Type	Male Pin
Contact Base Material	Copper Alloy
Contact Current Rating .	5
Contact Finish - Mating	150.0?in (3.81?m)
Contact Finish - Post	Copper Alloy
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	General Purpose
Contact Length - Mating	0.110" (2.79mm)
Contact Length - Post	0.505" (12.83mm)
Contact Material	Thermoplastic
Contact Mating Area Pla.	Tin
Contact Mating Area Pla.	3.81 ? 8.89??m?[?150 ? .
Contact Plating Material	Nickel
Contact Retention Withi.	Without
Contact Shape	Tin, Square
Contact Type	0.100" (2.54mm), Pin
Contact Underplating Ma.	Nickel
Current Rating (Amps)	250VAC
Fastening Type	0.295" (7.49mm)
Features	-55?C ~ 105?C, Breakawa.
Header Type	Breakaway
Housing Color	Natural
Housing Material	Polyester - GF
Ingress Protection	UL94 V-0
Insulation Color	Natural, Varies by Wire.
Insulation Height	Square
Insulation Material	-
Item	Connector
Mated Stacking Heights	150.0?in (3.81?m)
Material Flammability R.	Natural
Mating Retention	Without
Max. Temp.	221 Degrees F
Max. Voltage	250V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Solder, Board Mount; Ve.
Number of Contacts	2
Number of Positions	1, 2
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	1, -
Operating Temperature	-
Operating Temperature R.	-55 ? 105??C?[?-67 ? 22.
Overall Contact Length	0.100" (2.54mm)
Overall Length	0.288 in
Package	Active
Package Quantity	1
Packaging Method	Bag/Box
Packaging Quantity	500
Panel Mount Feature	Without
Part Status	Header
PCB Connector Assembly .	PCB Mount Header
PCB Contact Termination.	Tin
PCB Contact Termination.	Matte
PCB Mount Alignment	Without
PCB Mount Orientation	Vertical
PCB Mount Retention	Without
PCB Thickness (Recommen.	1.6?mm?[?.063?in?]
Pin Length (In.)	0.295 in
Pitch	2.54 mm (0.100")
Pitch - Mating	2
Primary Type	Board Mount
Row Spacing - Mating	All
Sealable	No
Series	Bulk, MTA-100 Series
Shrouding	Through Hole
Standards	UL, CSA Listed
Style	Unshrouded
Terminal Type	Straight Pin
Termination	-
Termination Method to P.	Through Hole - Solder
Termination Method to W.	Solder
Termination Post	2.79?mm?[?.11?in?]
Type	Header
UL Flammability Rating	UL 94V-0
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 3-644456-2	0.081	1000	20332		TE CONNECTIVITY/AMP BRAND		0.081 @ 1000
Sager Electronics	3-644456-2	0.083	1	33255		TE Connectivity		0.083 @ 1
Future Electronics	1721448	0.1152	1	10478		TE Connectivity		0.1152 @ 1
us.rs-online.com	70084951	0.14661	1	682		TE Connectivity		0.14661 @ 1
Newark	82AC1390	0.206	1	2255		AMP - TE CONNECTIVITY		0.206 @ 1
Digi-Key	A31112-ND	0.22	1	682		TE Connectivity AMP Connectors		0.22 @ 1
Onlinecomponents.com	3-644456-2	0.243	1	16695		TE Connectivity / AMP Brand		0.243 @ 1
TE Connectivity	3-644456-2	0.2719	1	22000		TE Connectivity (TE)		0.2719 @ 1
AmazonTP	B00MEL30KU	5.99	1	682	2	TE CONNECTIVITY / AMP		5.99 @ 1
AmazonSC	B00MEL30KU	11.74	1	682		TE CONNECTIVITY %2F AMP	0.000625	11.74 @ 1
Zoro	G500927927	140.0	1	In Stock		Te Connectivity		140.0 @ 1
