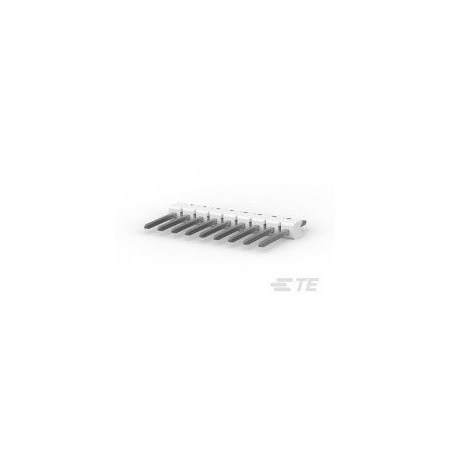

TE CONNECTIVITY / AMP 3-644456-9

mpn3-644456-9
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE CONNECTIVITY/AMP 3-644456-9

TE CONNECTIVITY/AMP 3-644456-9

zoom

Brand: TE CONNECTIVITY / AMP
PartNumber: 3-644456-9
Model: 3-644456-9
Manufacturer: TE CONNECTIVITY / AMP
Label: TE CONNECTIVITY / AMP

Attributes

Key	Value
Application	Signal, Printed Circuit.
Centerline (Pitch)	2.54?mm?[?.1?in?]
Circuit Application	Signal
Connection Material	Copper Alloy
Connection Type	Through Hole - Solder
Connector	Printed Circuit Board
Connector Height	10.03?mm?[?.395?in?]
Connector Mounting Type	Board Mount
Connector Profile	Narrow
Connector System	Wire-to-Board
Contact Base Material	Copper Alloy
Contact Current Rating .	5
Contact Mating Area Pla.	Tin
Contact Mating Area Pla.	3.81 ? 8.89??m?[?150 ? .
Contact Plating Material	Nickel
Contact Retention Withi.	Without
Contact Shape	Square
Contact Type	Pin
Contact Underplating Ma.	Nickel
Features	Breakaway Header
Header Type	Breakaway
Housing Color	Natural
Housing Material	Polyester - GF
Insulation Color	Natural
Item	Connector
Mating Retention	Without
Max. Temp.	221 Degrees F
Max. Voltage	250V AC
Mounting Type	Board Mount; Vertical; .
Number of Positions	9
Number of Rows	1
Operating Temperature R.	-55 ? 105??C?[?-67 ? 22.
Overall Length	0.188 in
Package Quantity	1
Packaging Method	Bag/Box
Packaging Quantity	500
Panel Mount Feature	Without
PCB Connector Assembly .	PCB Mount Header
PCB Contact Termination.	Tin
PCB Contact Termination.	Matte
PCB Mount Alignment	Without
PCB Mount Orientation	Vertical
PCB Mount Retention	Without
PCB Thickness (Recommen.	1.6?mm?[?.063?in?]
Pin Length (In.)	0.295 in
Sealable	No
Standards	UL, CSA Listed
Terminal Type	Straight Pin
Termination Method to P.	Through Hole - Solder
Termination Method to W.	Solder
Termination Post	2.79?mm?[?.11?in?]
UL Flammability Rating	UL 94V-0

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY AMP BRAND 3-644456-9	0.288	200	15369		TE CONNECTIVITY/AMP BRAND		0.288 @ 200
	TE Connectivity	3-644456-9	0.3769	1	2249		TE Connectivity (TE)		0.3769 @ 100
	Newark	16M2969	0.415	1000	100		AMP - TE CONNECTIVITY		0.415 @ 1000
	Onlinecomponents.com	3-644456-9	0.422	60	3737		TE Connectivity		0.422 @ 100
	Digi-Key	A31119-ND	0.4435	1	100		TE Connectivity AMP Connectors		0.4435 @ 100
	AmazonTP	B00KSPKZZ2	5.99	1	100	2	TE Connectivity		5.99 @ 100
	AmazonSC	B00KSPKZZ2	11.09	1	100		TE Connectivity		11.09 @ 100
	Zoro	G000928097	118.0	1	100		Te Connectivity		118.0 @ 100
