TE Connectivity 2-644489-6

B00KSP0MEG

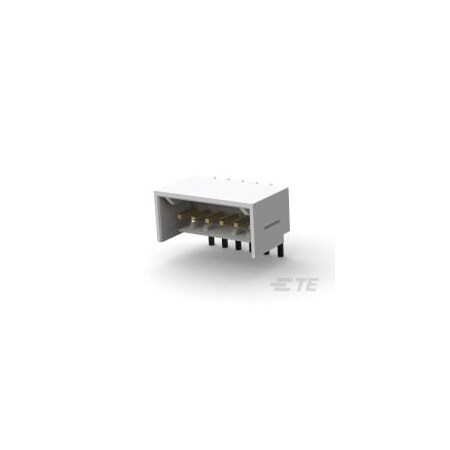

TE Connectivity Part Number 2-644489-6

TE Connectivity Part Number 2-644489-6zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number644489
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height10.41?mm?[?.41?in?]
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialCopper Alloy
Contact Current Rating .5
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.-
Contact Length - Mating0.200" (5.08mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold
Contact Mating Area Pla.Bright
Contact Mating Area Pla..76??m?[?30??in?]
Contact Retention Withi.Without
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER R/A 6POS 2..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA144562-ND
Fastening TypeFriction Lock
Features-
Header TypeShrouded
Housing ColorBlack
Housing MaterialPolyester - GF
Ingress Protection-
Insulation ColorBlack
Insulation Height0.343" (8.71mm)
Insulation MaterialPolyester
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-644489-6
Manufacturer Standard L.22 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating RetentionWith
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions6
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Overall Contact Length-
PackageBulk
Packaging MethodLoose Piece
Packaging Quantity1000
Panel Mount FeatureWithout
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Gold
PCB Mount AlignmentWithout
PCB Mount OrientationRight Angle
PCB Mount RetentionWithout
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating-
SealableNo
SeriesMTA-100
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Method to W.Solder
Termination Post3.3?mm?[?.13?in?]
UL Flammability RatingUL 94V-0
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-644489-61.82305767TE CONNECTIVITY/AMP BRAND1.82 @ 30
Newark17R84002.22200045AMP - TE CONNECTIVITY2.22 @ 1000
TE Connectivity2-644489-62.862712000TE Connectivity (TE)2.8627 @ 1
thumbzoomDigi-Key23077593.13211990TE Connectivity AMP Connectors3.132 @ 1
thumbzoomZoroG4009280933.36345Te Connectivity3.36 @ 3
