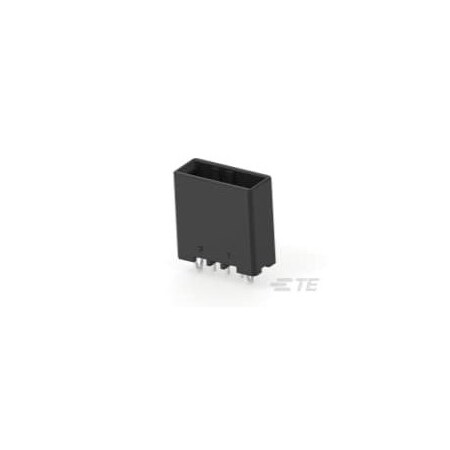

TE Connectivity 2-178313-3

mpn2-178313-3
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 2-178313-3

Brand: TE Connectivity
PartNumber: 2-178313-3
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	General Purpose, Indust.
Base Product Number	178313
Category	Connectors, Interconnec.
Centerline (Pitch)	3.81?mm?[?.149?in?]
Circuit Application	Power & Signal
Connector	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Style	Plug
Connector System	Wire-to-Board
Connector Type	Header
Contact Current Rating .	12
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.150" (3.81mm)
Contact Material	Copper Alloy
Contact Plating Material	Gold
Contact Retention	Without
Contact Shape	Rectangular
Contact Type	Tab
Country of Origin (subj.	Japan
Current Rating (Amps)	-
Fastening Type	Detent Lock
Features	Board Lock
Halogen Free	Yes
Header Type	Shrouded
Ingress Protection	-
Insertion Force	Standard
Insulation Color	Black
Insulation Height	0.850" (21.59mm)
Insulation Material	Thermoplastic, Polyeste.
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention	With
Mating Retention Type	Latch
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Positions	3
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-55?C ~ 105?C
Operating Temperature R.	-55 ? 105??C?[?-67 ? 22.
Operating Voltage	250
Overall Contact Length	-
Package	Bulk
PCB Mount Alignment	Without
PCB Mount Orientation	Vertical
PCB Mount Retention	With
PCB Mount Retention Type	Retention Leg
Pitch - Mating	0.150" (3.81mm)
Product Status	Active
Product Type	Connector
Row Spacing - Mating	-
Row-to-Row Spacing	7.62?mm?[?.299?in?]
Sealable	No
Series	Dynamic D-3100
Shielded	No
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
Termination Method to P.	Through Hole - Solder
UL Flammability Rating	UL 94V-0
Voltage Rating	250V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	12H3073	1.92	2530	52	AMP - TE CONNECTIVITY	1.92 @ 2530
Waldom	TE CONNECTIVITY AMP BRAND 2-178313-3	2.88	23	279	TE CONNECTIVITY/AMP BRAND	2.88 @ 23
TE Connectivity	2-178313-3	3.79088	1	1757	TE Connectivity (TE)	3.79088 @ 1
Digi-Key	664241	3.888	1	52	TE Connectivity AMP Connectors	3.888 @ 1
Zoro	G500939074	6097.3	2530	52	Te Connectivity	6097.3 @ 2530
