TE Raychem 811274-000

mpn811274-000
brandname: RAYCHEM - TE CONNECTIVITY
manufacturername: RAYCHEM - TE CONNECTIVITY

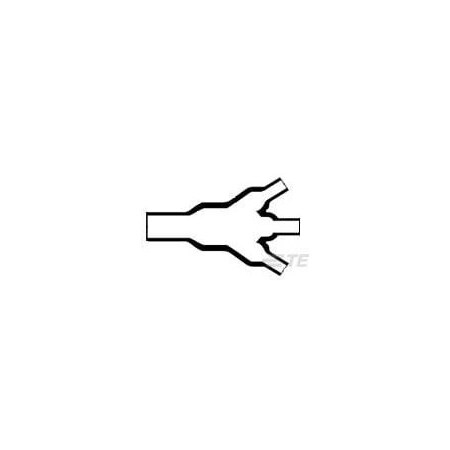

TE Raychem Connector

TE Raychem Connector

zoom

Brand: TE Raychem
PartNumber: 811274-000
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Adhesive Type	Adhesive Purchased Sepa.
Base Product Number	462A034
Breakout Angle	30
Category	Cables, Wires - Managem.
Color	Black
Description	HEATSHRINK BOOT BRKOUT .
Detailed Description	Heat Shrink Boot, Trans.
Digi-Key Part Number	462A034-12-0-ND
Features	-
Fluid/Chemical Resistan.	Long-term immersn eleva.
Inside Diameter Range (.	.74 " - 1.52 in
Inside Diameter Range (.	.38 " - .76 in
Inside Diameter Range (.	.38 " - .76 in
Inside Diameter Range (.	.38 " - .76 in
Large Diameter Recovered	0.740" (18.80mm)
Large Diameter Supplied	1.520" (38.61mm)
Large Recovered Length	2.421" (61.49mm)
Manufacturer	TE Connectivity Aerospa.
Manufacturer Product Nu.	462A034-12-0
Manufacturer Standard L.	7 Weeks
Material	Fluoroelastomer (FKM), .
Material Code	12
Material Systems Code	200
Mfr	TE Connectivity Aerospa.
Molded Part Shape	One to Three Cables
Molded Part Type	Transition
Number of Branches/Legs	3
Operating Temperature R.	-55 " - 200 ?C
Package	Bulk
Pliancy	Flexible
Product Status	Active
Product Type	Molded Part
Series	Thermofit 462A0
Shell Size - Insert	34
Size Code	34
Small Diameter Recovered	0.382" (9.70mm)
Small Diameter Supplied	0.760" (19.30mm)
Small Recovered Length	2.902" (73.71mm)
Special Requirements	Flame Retarded
Total Length Recovered	5.319" (135.10mm)
Total Length Supplied	-
Transition Type	1 to 3 Cables
Type	Boot, Transition - Brea.
Wire/Cable Main Branch .	.43 in, .47 in, .55 in
Wire/Cable OD	.79 in, .94 in, .87 in,.
Wire/Cable Sm Branch OD	.43 in, .47 in, .55 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Allied Electronics	E5182147	133.78	25	In Stock		TE Connectivity		133.78 @ 25
	Verical	462A034-12-0	137.78	1	5		TE Connectivity / Raychem		137.78 @ 1
	Waldom	TE CONNECTIVITY 462A034-12-0	145.99	13	In Stock		TE Connectivity		145.99 @ 1
	Onlinecomponents.com	811274-000	152.32	1	4		TE Connectivity / Raychem		152.32 @ 1
	Digi-Key	2393851	175.38	25	In Stock		TE Connectivity Aerospace, Defense and Marine		175.38 @ 25
	Zoro	G400954238	185.99	1	In Stock		Raychem		185.99 @ 1
	Newark	46AJ3818	203.52	1	In Stock		RAYCHEM - TE CONNECTIVITY		203.52 @ 1
