- mpnLCAX6-56-L
- brandname: Panduit
- manufacturername: Panduit

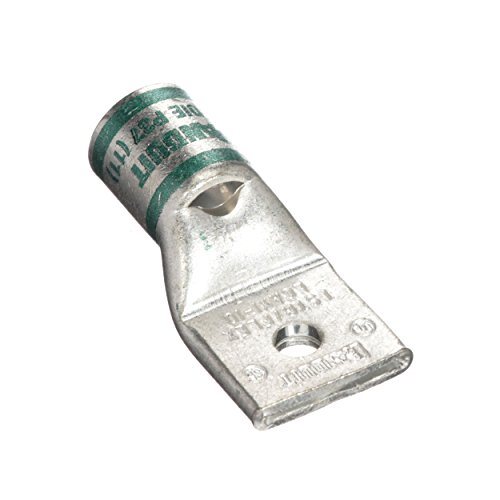

Panduit LCAX6-56-L Copper Compression Lug, 1 Hole, #6 AWG Flex, 5/16-Inch Stud
- Brand: Panduit
- PartNumber: LCAX6-56-L
- Model: LCAX6-56-L
- Color: Blue
- Size: 5/16-Inch Stud Hole
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 6 |
| Angle | Straight |
| Approvals | CSA, UL |
| Barrel Type | Standard |
| Base Product Number | LCAX |
| Brand | Panduit |
| Cable Size | 6 AWG |
| Catalog Number | LCAX6-56-L |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Color Code | Blue |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper, Seamless Copper |
| Contact Plating | Electro-Tin |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | 0.220" (5.59mm) |
| Diameter - Barrel OD | 0.310" (7.87mm) |
| Diameter - Ring ID | 0.340" (8.64mm) |
| Die Type | P24 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Gross Weight | 0.935 lbs |
| GTIN | 00074983433742 |
| Hole Size | 5?16 |
| Insulation | Non-Insulated |
| Insulation Type | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCAX6-56-L |
| Item Type | Copper Compression Conn. |
| Length | 1.4" |
| Length - Overall | 1.400" (35.56mm) |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | LCAX6-56-L |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 6 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 6 AWG |
| Mounting | 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Overall Length | 1.4 " |
| Overall Width | 0.56 " |
| Package | Bulk |
| Package Quantity | 50 |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug LCAX Series, Pa. |
| Size | #6 AWG Class B, C, G, H. |
| Special Features | Standard Flex Barrel, C. |
| Strip Length | 9?16" |
| Stud Size | 5/16 ", 44697, 5/16 in |
| Stud/Tab Size | 5/16 Stud |
| Style | One-Hole |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.070" (1.78mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel, Crimp |
| Type | 1 Hole |
| UPC | 074983433742 |
| UPC Code | 074983433742 |
| Volts AC | 600 |
| Width | 0.56" |
| Width - Outer Edges | 0.560" (14.22mm) |
| Wire Gauge | 6 AWG |
| Wire Size | 6 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NEP Electronics | LCAX6-56-L | 1.25 | 4 | 10 | | Panduit | | 1.25 @ 10 |
 | cbtcompany.com | LCAX6-56-L | 1.4 | 1 | 10 | | PANDUIT | | 1.4 @ 10 |
| Digi-Key | 4564993 | 2.463 | 1 | 35 | | Panduit Corp | | 2.463 @ 10 |
 | Newark | 14AC0753 | 2.65 | 1 | 10 | | PANDUIT | | 2.65 @ 10 |
 | alldataresource.com | PAN-LCAX6-56-L | 2.67 | 1 | 10 | | Panduit | | 2.67 @ 10 |
 | Zoro | G0774249 | 2.85 | 3 | 10 | 58 | Panduit | 0.94 | 2.85 @ 10 |
 | electricalparts.com | LCAX6-56-L | 2.8672 | 1 | 14 | | Panduit | | 2.8672 @ 10 |
 | Galco | LCAX6-56-L-PNDT | 3.11 | 50 | 10 | | Panduit | 0.935 | 3.11 @ 50 |
 | Platt.com | 0687029 | 3.33 | 1 | 40 | | Panduit | | 3.33 @ 10 |
| Onlinecomponents.com | LCAX6-56-L | 3.49 | 1 | 90 | | PANDUIT | | 3.49 @ 10 |
 | crescentelectric.com | 694059 | 3.55 | 1 | 10 | | Panduit | | 3.55 @ 10 |
| Airline Hydraulics | PANDUIT LCAX6-56-L | 3.76 | 1 | 10 | | Panduit Corp | | 3.76 @ 10 |
| us.rs-online.com | 70044048 | 161.94 | 1 | 10 | | Panduit | | 161.94 @ 10 |
 | gordonelectricsupply.com | LCAX6-56-L | 165.0 | 1 | 10 | 12 | PANDUIT | | 165.0 @ 10 |
 | turtle.com | PAN LCAX6-56-L | 367.77 | 1 | 10 | | Panduit | | 367.77 @ 10 |
| steinerelectric.com | 319728 | 368.07 | 1 | 10 | | Panduit | | 368.07 @ 10 |
