TE CONNECTIVITY / AMP 1-770178-1

B00LQQEV4I

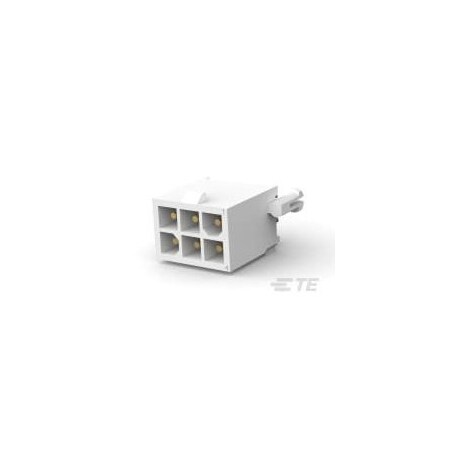

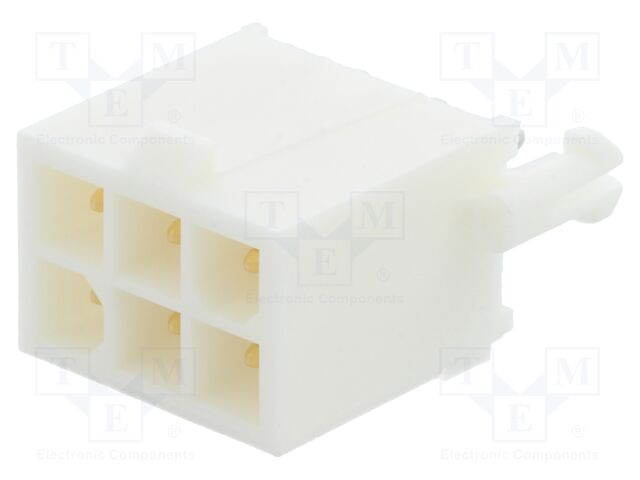

TE CONNECTIVITY / AMP 1-770178-1 PLUG & SOCKET CONN, PLUG, 6POS, 4.14MM (50 pieces)

TE CONNECTIVITY / AMP 1-770178-1 PLUG & SOCKET CONN, PLUG, 6POS, 4.14MM (50 pieces)zoom

Attributes

Key Value
Alternate Mfr Part Numb.1-770178-1
CategoryConnectors, Interconnec.
Centerline (Pitch)4.14?mm?[?.162?in?]
Circuit ApplicationPower
ConnectorPrinted Circuit Board, .
Connector Mounting TypeBoard Mount
Connector pinout layout2x3
Connector seriesMini Universal MATE-N-L.
Connector SystemWire-to-Board
Connector TypeMale Pin
Contact Current Rating .9.5
Contact Finish - Mating30.0?in (0.76?m)
Contact Finish - PostBrass
Contact Finish Thicknes.Tin
Contact Finish Thicknes.General Purpose
Contact Length - Mating0.175" (4.45mm)
Contact Length - Post-
Contact MaterialPolyamide (PA), Nylon
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?30??in?]
Contact platingselectively gold plated
Contact RetentionWithout
Contact ShapeGold
Contact Termination Are.Tin
Contact Type0.163" (4.14mm), Pin
Contacts pitch4.14mm
Country of Origin (subj.Mexico
Current rating9.5A
Current Rating (Amps)600VAC
Electrical mountingTHT
Family NameUniversal MATE-N-LOK Fa.
Fastening Type-
Features-20?C ~ 105?C
Glow Wire RatingStandard Part - Not Glo.
Housing ColorWhite
Housing MaterialNylon
Housing TypeReceptacle
Ingress ProtectionUL94 V-0
Insulation ColorVaries by Wire Gauge
Insulation HeightCircular
Insulation MaterialBoard Lock
Kind of connectormale
Locking systemlatch
ManufacturerTE Connectivity
Mated Stacking Heights150.0?in (3.81?m)
Material Flammability R.White
Mating AlignmentWith
Mating Alignment TypeChamfered Edges
Mechanical mountingon PCBs,
MfrTE Connectivity AMP Con.
Mounting TypeSolder
Number of Contacts6
Number of pins6
Number of Positions2, 6
Number of Positions Loa.Board to Cable/Wire
Number of Power Positio.6
Number of Rows2, 0.163" (4.14mm)
Number of Signal Positi.0
Operating Temperature-
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage600
Overall Contact Length0.531" (13.50mm)
PackageActive
Packaging MethodBag
Panel Mount FeatureWithout
Part StatusHeader
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeBoardlock
Pitch - Mating6
Primary TypeSoft Shell
Product TypeHeader
Rated voltage600V
Row Spacing - MatingAll
Row-to-Row Spacing4.14?mm?[?.162?in?]
SealableNo
SeriesBulk, Mini-Universal MA.
ShroudingThrough Hole
Spatial orientationstraight
StyleShrouded - 4 Wall
TerminationLocking Ramp
Termination Method to P.Through Hole - Solder
Termination Post3.69?mm?[?.145?in?]
TypeHeader
Type of connectorwire-board
UL Flammability RatingUL 94V-0
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark13M36981.21749AMP - TE CONNECTIVITY1.2 @ 1
Future Electronics20842671.8481478TE Connectivity1.848 @ 1
thumbzoomZoroG9010406382.31443Te Connectivity2.31 @ 4
thumbzoomDigi-KeyA32457-ND2.44143TE Connectivity AMP Connectors2.44 @ 1
Onlinecomponents.com1-770178-12.7251072TE Connectivity2.725 @ 10
TE Connectivity1-770178-13.023481356TE Connectivity (TE)3.02348 @ 1
RS Delivers215-1983.14881145TE Connectivity3.1488 @ 1
us.rs-online.com700851523.2511600TE Connectivity3.25 @ 1
thumbzoomTME1-770178-15.441140TE Connectivity5.44 @ 1
