- mpnLCAX6-38-L
- brandname: Panduit
- manufacturername: Panduit

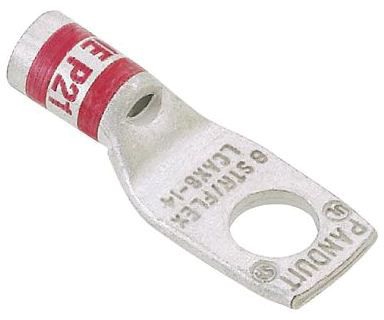

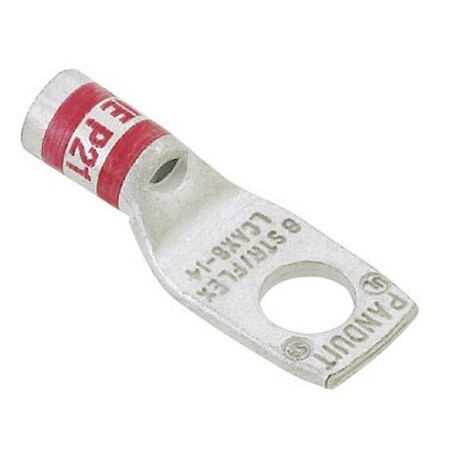

LCAX6-38-L, Lug Terminal 6AWG 38.1mm 15.74mm Tin (10 Items)
- Brand: Panduit
- PartNumber: LCAX6-38-L
- Model: LCAX6-38-L
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 6 |
| Angle | Straight |
| Approvals | CSA, UL |
| Base Product Number | LCAX |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 6 AWG |
| Catalog Number | LCAX6-38-L |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Color Code | Blue |
| Color Family | Blue |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper, Seamless Copper |
| Contact Plating | Electro-Tin |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 6 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.220" (5.59mm) |
| Diameter - Barrel OD | 0.310" (7.87mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Die Type | P24 |
| Digi-Key Part Number | 298-11758-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 0.99 lbs |
| GTIN | 00074983433810 |
| Hole Size | 3?8 |
| Insulation | Non-Insulated |
| Insulation Type | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCAX6-38-L |
| Item Type | Copper Compression Conn. |
| Length | 1-1/2" |
| Length - Overall | 1.500" (38.10mm) |
| Lug Wire Size | 6 AWG |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCAX6-38-L |
| Manufacturer Product Nu. | LCAX6-38-L |
| Manufacturer Standard L. | 2 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 6 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 6 AWG |
| Mounting | 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Overall Length | 1.5 " |
| Overall Width | 0.62 " |
| Package | Bulk |
| Package Quantity | 50 |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug LCAX Series, Pa. |
| Size | #6 AWG Class B, C, G, H. |
| Special Features | Standard Flex Barrel, C. |
| Strip Length | 9?16" |
| Stud Size | 3/8 in, 44628, 3/8 " |
| Stud/Tab Size | 3/8 Stud |
| Style | One-Hole |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.060" (1.52mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel, Crimp |
| Type | 1 Hole |
| UNSPSC | 39121405 |
| UPC | 074983433810 |
| UPC Code | 074983433810 |
| Volts AC | 600 |
| Width | 0.62" |
| Width - Outer Edges | 0.620" (15.75mm) |
| Wire Gauge | 6 AWG |
| Wire Size | 6 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCAX6-38-L | 1.58 | 1 | 10 | | PANDUIT | | 1.58 @ 10 |
 | French Gerleman | PANDLCAX638L | 1.84 | 1 | 10 | | Panduit | | 1.84 @ 10 |
 | Digi-Key | 4564980 | 2.764 | 1 | 348 | | Panduit Corp | | 2.764 @ 10 |
 | alldataresource.com | PAN-LCAX6-38-L | 2.95 | 1 | 10 | | Panduit | | 2.95 @ 10 |
 | Newark | 14AC0752 | 3.03 | 1 | 88 | | PANDUIT | | 3.03 @ 10 |
 | Component Electronics | 516N-3/8Z | 3.46 | 1 | 34 | | Panduit Corp | | 3.46 @ 10 |
 | Zoro | G0774258 | 3.48 | 3 | 10 | 58 | Panduit | 0.99 | 3.48 @ 10 |
 | Galco | LCAX6-38-L-PNDT | 3.5 | 50 | 10 | | Panduit | 0.99 | 3.5 @ 50 |
 | Platt.com | 0686998 | 3.73 | 1 | 10 | | Panduit | | 3.73 @ 10 |
 | crescentelectric.com | 281170 | 3.99 | 1 | 10 | | Panduit | | 3.99 @ 10 |
| Airline Hydraulics | PANDUIT LCAX6-38-L | 4.22 | 1 | 10 | | Panduit Corp | | 4.22 @ 10 |
 | gordonelectricsupply.com | LCAX6-38-L | 184.5 | 1 | 10 | 12 | PANDUIT | | 184.5 @ 10 |
| us.rs-online.com | 70044047 | 195.43 | 1 | 10 | | Panduit | | 195.43 @ 10 |
 | turtle.com | PAN LCAX6-38-L | 412.75 | 1 | 10 | | Panduit | | 412.75 @ 10 |
| Graybar | 25104071 | 686.784 | 1 | 10 | | Panduit | | 686.784 @ 10 |
