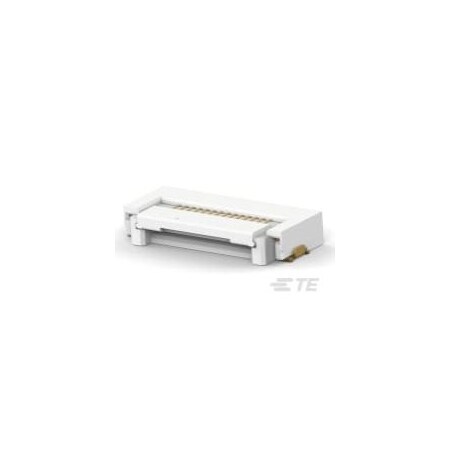

TE Raychem 1-1775333-4

mpn1-1775333-4
brandname: AMP - TE CONNECTIVITY
manufacturername: AMP - TE CONNECTIVITY

TE Raychem Connector

Brand: TE Raychem
PartNumber: 1-1775333-4
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Actuator Color	Natural
Actuator Material	Liquid Crystal Polymer .
Application	Signal
Base Product Number	1775333
Cable End Type	Straight
Category	Connectors, Interconnec.
Centerline (Pitch)	.5?mm?[?.0197?in?]
Circuit Application	Signal
Color	Natural
Connection Material	Phosphor Bronze
Connector	Flexible Printed Circui.
Connector Height	2?mm?[?.0787?in?]
Connector Mounting Type	Board Mount
Connector System	Flex-to-Board
Connector Terminates To	Flexible Printed Circuit
Connector Type	Receptacle
Connector Width	6.25?mm?[?.2461?in?]
Connector/Contact Type	Contacts, Bottom
Contact Base Material	Phosphor Bronze
Contact Current Rating .	.5
Contact Finish	Gold Plated, Gold
Contact Finish Thickness	50.0?in (1.27?m)
Contact Material	Phosphor Bronze
Contact Mating Area Pla.	Gold
Contact Mating Area Pla.	.025??m?[?1??in?]
Contact Mating Location	Bottom
Contact Plating Thickne.	0.025 ?m
Contact Type	Socket
Current Rating	0.5 A
Current Rating (Amps)	0.5A
Features	Circuit Identification .
FFC, FCB Thickness	0.30mm
Flat Flex Type	FPC
Flex Cable Thickness	.3?mm?[?.012?in?]
FPC Actuator Type	Front Flip (Rear Hinge)
Height	2 mm
Height Above Board	0.081"" (2.05mm)
Hole Center to Center	0.5 mm
Housing Color	Natural
Housing Material	Liquid Crystal Polymer .
Insertion Force Type	Zero Insertion Force (Z.
Item	Connector
Length	11.75 mm
Locking Feature	Flip Lock
Material	Liquid Crystal Polymer
Material Flammability R.	UL94 V-0
Mating Alignment	With
Mating Cycles	-
Max. Temp.	85?C
Max. Voltage	250V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Surface Mount, Right An.
Number of Contacts	14
Number of Positions	14
Number of Rows	1
Operating Temperature	-20?C ~ 85?C
Operating Temperature R.	-20 ? 85??C?[?-4 ? 185?.
Package	Tape & Reel (TR)
Package Quantity	1
Packaging Method	Tape & Reel
Packaging Quantity	2000
Part Status	Active
PCB Connector Assembly .	PCB Mount Receptacle
PCB Contact Termination.	Gold
PCB Mount Alignment	Without
PCB Mount Orientation	Right Angle
PCB Mount Retention	With
Pitch	0.020"" (0.50mm)
Sealable	No
Series	-, FPC
Terminal Finish	Gold Plated
Terminal Type	Surface Mount
Termination	Solder
Termination Method to P.	Surface Mount
Voltage Rating	250V
Width	0.2461 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 1-1775333-4	0.35	2000	21365	TE CONNECTIVITY/AMP BRAND	0.35 @ 2000
TE Connectivity	1-1775333-4	0.5048	1	19332	TE Connectivity (TE)	0.5048 @ 1
Digi-Key	5021780	0.79	2000	126	TE Connectivity AMP Connectors	0.79 @ 1
Zoro	G505782965	85.5	1	In Stock	Te Connectivity	85.5 @ 1
