- mpnESN1102
- brandname: US Motors
- manufacturername: US Motors

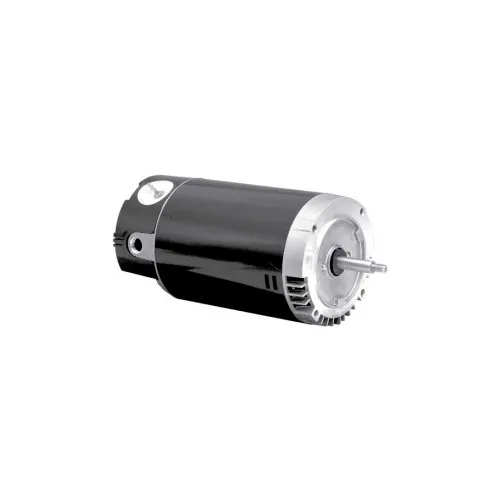

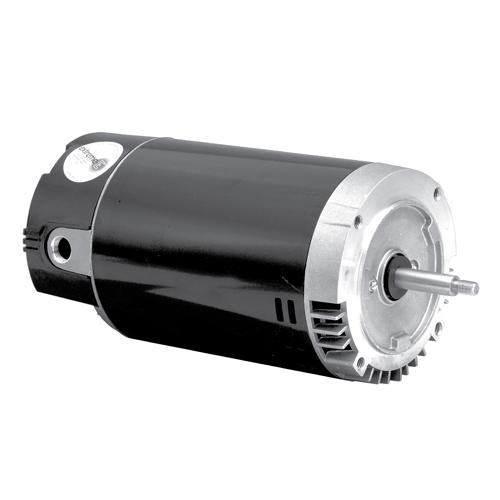

ESN1102 | 1 hp 3450 RPM 56J - 115/208-230V Northstar Swimming Pool Motor US Electric Motor
- Brand: US Motors
- PartNumber: ESN1102
- PackageQuantity: 1
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| <span style="color | #ff0000;">We cannot shi. |
| Bearings | Ball |
| Capacitor | 50MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 18.70 |
| Family Series | US Motors Motors |
| Frame | 56J |
| Frequency | 60 Hz |
| Gross Weight | 28 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | B |
| Item Number | ESN1102 |
| Kilowatts | 0.8 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | K063DGR5176013J |
| Manufacturer Part Number | ESN1102 |
| Maximum Ambient Tempera. | 60? C |
| Model Number | K063DGR5176013J |
| Mounting | Footless, Face |
| Mounting Type | C-Flange |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | ESN1102 |
| Phase | 1 |
| Product Type | Pump, PSC (Permanent Sp. |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.85 |
| Ship Weight | 28 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Voltage | 110-120V, 208V, 230V |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466130 | 320.95 | 1 | In Stock | | US Motors | | 320.95 @ 1 |
 | emotorpro.com | ESN1102 | 360.49 | 1 | In Stock | | U.S. Motors | 28.0 | 360.49 @ 1 |
 | National Supply Network | B466130 | 363.04 | 1 | In Stock | | US MOTORS | | 363.04 @ 1 |
 | motorsandcontrol.com | ESN1102 | 392.95 | 1 | In Stock | | US Motors (Nidec) | 18.7 | 392.95 @ 1 |
 | Galco | ESN1102-USM | 403.31 | 1 | In Stock | | US Motors | 28.0 | 403.31 @ 1 |
| motionindustries.com | 04600818 | 514.95 | 1 | In Stock | | US Motors (Nidec) | | 514.95 @ 1 |
