TE Connectivity 2149159-3

B00DWIH68G

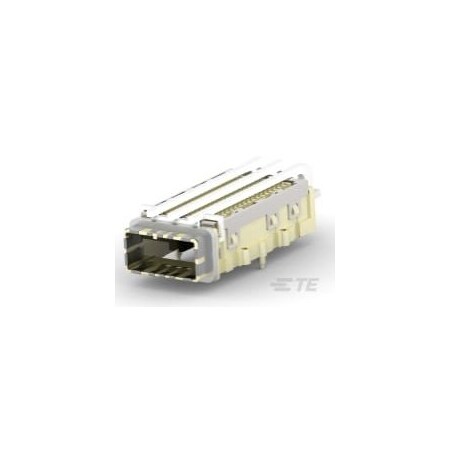

TE Connectivity 2149159-3 Conn; Rect; Pluggable/IO; Receptacle; 84Pos; Press-Fit; CXP; w/HeatSink, Lightpipe; LCP

TE Connectivity 2149159-3 Conn; Rect; Pluggable/IO; Receptacle; 84Pos; Press-Fit; CXP; w/HeatSink, Lightpipe; LCPzoom

Attributes

Key Value
Alternate Mfr Part Numb.2149159-3
Base Product Number2149159
Bezel Mounting StyleThrough Bezel
Cage Plating MaterialTin over Nickel
Cage TypeSingle
CategoryConnectors, Interconnec.
Centerline (Pitch).031?mm?[?.8?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle with Cage, w.
Connector SystemCable-to-Board
Connector TypeCXP
Contact Base MaterialCopper Alloy
Contact Current Rating ..5
Contact FinishGold
Contact Finish Thickness-
Contact Mating Area Pla.Gold or Gold Flash over.
Country of Origin (subj.China
Data Rate (Max)125
DescriptionCONN CXP RCPT W/CAGE 84.
Detailed Description84 Position CXP Recepta.
Digi-Key Part NumberA103954-ND
EMI Containment Feature.Elastomeric Gasket
FeaturesBoard Guide, EMI Shield.
For Use WithCXP Cable Assembly
For Use With Pluggable .CXP Cable Assembly
Form FactorCXP
Housing MaterialLCP (Liquid Crystal Pol.
Included LightpipeYes
Lightpipe ConfigurationCustom
Lightpipe ProfileStandard
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2149159-3
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Ports1
Number of Positions84
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
PackageTray
Packaging MethodBox & Tray, Tray
PCB Mounting StyleSingle-Sided
PCB Thickness (Recommen.1.57?mm?[?.062?in?]
Plating MaterialTin over Nickel
Port Matrix Configurati.1 x 1
Primary TypePluggable/IO
Product StatusLast Time Buy
Product TypeReceptacle Assembly
Profile Height16.37?mm?[?.644?in?]
SealableYes
Series-
TerminationPress-Fit
Termination Method to P.Through Hole - Press-Fit
TypeReceptacle
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Arrow2149159-329.9231160TE Connectivity29.923 @ 2
WaldomTE CONNECTIVITY AMP BRAND 2149159-334.53279TE CONNECTIVITY/AMP BRAND34.53 @ 2
TE Connectivity2149159-346.424815TE Connectivity (TE)46.4248 @ 2
thumbzoomZoroG40104263752.121602Te Connectivity52.12 @ 160
Newark76AC445353.86179AMP - TE CONNECTIVITY53.86 @ 2
us.rs-online.com7023397262.881602TE Connectivity62.88 @ 160
thumbzoomDigi-Key279899363.312279TE Connectivity AMP Connectors63.312 @ 2
AmazonTPB010II4OB471.02125TE Connectivity71.02 @ 2
AmazonUNKB010II4OB471.0212TE Connectivity71.02 @ 2
Onlinecomponents.com2149159-383.941235TE Connectivity / AMP Brand83.94 @ 2
AmazonSCB00FRBOAGC86.7312TE Connectivity / AMP86.73 @ 2
