TE Connectivity 6-2301994-1

B086WPHJ8T

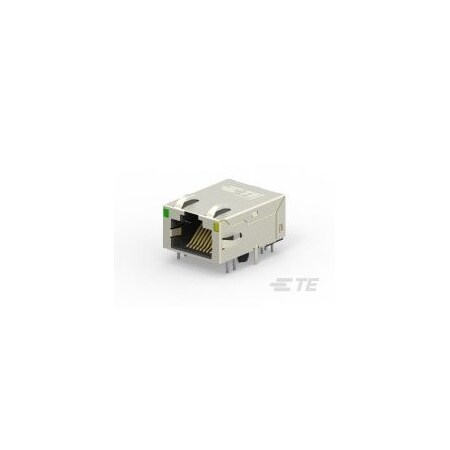

6-2301994-1, Conn RJ-45 RCP 8 POS 1.27mm Solder RA Thru-Hole 17 Terminal 1 Port Cat 6 Tray (5 Items)

6-2301994-1, Conn RJ-45 RCP 8 POS 1.27mm Solder RA Thru-Hole 17 Terminal 1 Port Cat 6 Tray (5 Items)zoom

Attributes

Key Value
AngleRight Angle Straight
Cable TypeCat 6
ConnectorPrinted Circuit Board
Connector Contact Densi.Standard
Connector Height11.3?mm?[?.444?in?]
Connector ProfileLow
Contact Base MaterialCopper Alloy
Contact Mating Area Pla.Gold over Nickel
Contact Mating Area Pla..76??m?[?30??in?]
Contact PlatingGold Plated Copper Alloy
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing MaterialLCP (Liquid Crystal Pol.
KeyedNo
LED Color (Bottom Left)None
LED Color (Bottom Right)None
LED Color (Top Left)Green/Orange
LED Color (Top Right)Yellow
Mating Entry LocationSide
Modular Connector StyleJack
Modular JackRJ45 with Integrated Ma.
Modular Jack Latch Orie.Inverted - Latch Up
Modular JacksRJ Type Jacks & Plugs
Number of Contacts8
Number of Loaded Positi.8
Number of Positions8
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Packaging MethodTray
Packaging Quantity50
PCB Contact Termination.Tin
PCB Mount OrientationRight Angle
PCB Mount Retention TypeBoardlock
Performance CategoryCat 5e
Port ConfigurationSingle Port
Port Matrix Configurati.1 x 1
Primary TypeRJ45
SealableNo
SeriesRJ45 Series
Shield MaterialBrass
Shield Plating MaterialNickel
ShieldedYes
Status IndicatorLED
TerminationThrough Hole
Termination Method to P.Through Hole - Solder
TypeJack
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-KeyA126258-ND8.8615TE Connectivity AMP Connectors8.86 @ 5
thumbzoomZoroG8010258419.024005Te Connectivity9.0 @ 2400
us.rs-online.com7107210010.2624005TE Connectivity10.26 @ 2400
thumbzoomNewark70AH772812.3311195TE CONNECTIVITY12.33 @ 5
TE Connectivity6-2301994-114.32441686TE Connectivity (TE)14.3244 @ 5
