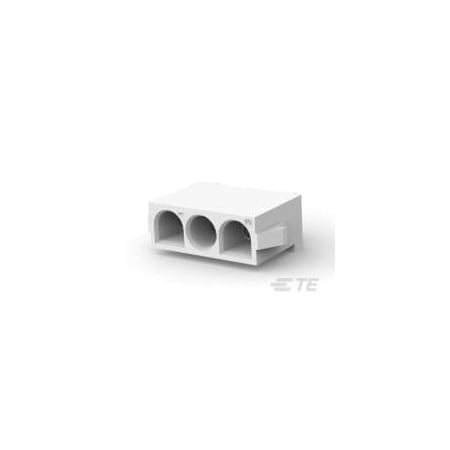

TE Connectivity / AMP 350760-4

B00M1L6G1S

TE CONNECTIVITY / AMP 350760-4

TE CONNECTIVITY / AMP 350760-4zoom

Attributes

Key Value
Applications-
Base Product Number350760
CategoryConnectors, Interconnec.
Centerline (Pitch)6.35?mm?[?.25?in?]
Circuit ApplicationPower
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector TypeHeader
Contact Current Rating .12, 15
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Post0.155" (3.94mm)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Pre-Tin
Contact Mating Area Pla.3.81 ? 5.08??m?[?150 ? .
Contact RetentionWithout
Contact ShapeCircular
Contact Termination Are.Pre-Tin
Contact TypeSocket, Female Socket
Country of Origin (subj.China
Current Rating (Amps)-
Family NameUniversal MATE-N-LOK Fa.
Fastening TypeLocking Ramp
Features-
Glow Wire RatingStandard Part - Not Glo.
Header TypeShrouded
Housing ColorNatural
Housing MaterialNylon
Housing TypeReceptacle
Ingress Protection-
Insulation ColorNatural
Insulation Height0.550" (13.97mm)
Insulation MaterialPolyamide (PA), Nylon
Mated Stacking Heights-
Material Flammability R.UL94 V-2
Mating AlignmentWith
Mating Alignment TypePolarization
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts3
Number of Positions3
Number of Positions Loa.All
Number of Power Positio.3
Number of Rows1
Operating Temperature-
Operating Temperature R.-40 ? 105??C?[?-40 ? 22.
Operating Voltage600
PackageBulk
Packaging MethodBag
Panel Mount FeatureWithout
Part StatusActive
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
PCB Mount Retention TypeSolder Tail
Pitch6.35 mm (0.250")
Pitch - Mating0.250" (6.35mm)
Primary TypeSoft Shell
Product TypeHeader
Row Spacing - Mating-
SealableNo
SeriesUniversal MATE-N-LOK Se.
StyleBoard to Cable/Wire
TerminationPCB, Solder
Termination Method to P.Through Hole - Solder
Termination Post3.18?mm?[?.125?in?]
TypeSocket Header
UL Flammability RatingUL 94V-2
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark92F84240.421358AMP - TE CONNECTIVITY0.42 @ 50
Onlinecomponents.com350760-40.43514968TE Connectivity / AMP Brand0.435 @ 50
HotendaH14176410.556150TE Connectivity AMP Connectors0.556 @ 50
WaldomTE CONNECTIVITY AMP BRAND 350760-40.561003200TE CONNECTIVITY/AMP BRAND0.56 @ 100
Arrow350760-40.5971252TE Connectivity0.597 @ 50
Future Electronics47108690.672123470TE Connectivity0.672 @ 50
TE Connectivity350760-40.804381528TE Connectivity (TE)0.80438 @ 50
Digi-Key147845310.857916302TE Connectivity AMP Connectors0.8579 @ 50
thumbzoomZoroG1009399310.881050Te Connectivity0.88 @ 50
us.rs-online.com700849250.93150TE Connectivity0.93 @ 50
RS Delivers680-17391.1411555TE Connectivity1.14 @ 50
AmazonSCB00DK84XDE11.09150TE Connectivity11.09 @ 50
AmazonTPB01J9VLSWO20.971502TE CONNECTIVITY20.97 @ 50
