Century 9672

mpn9672
brandname: Century
manufacturername: Century

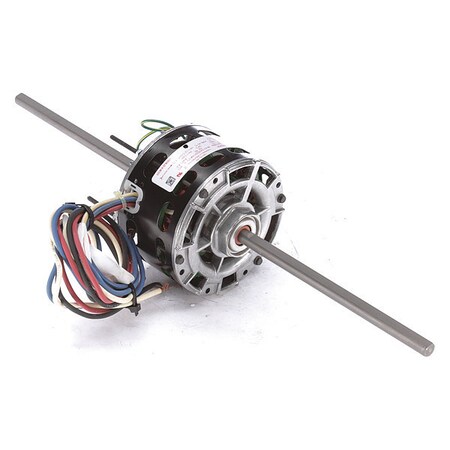

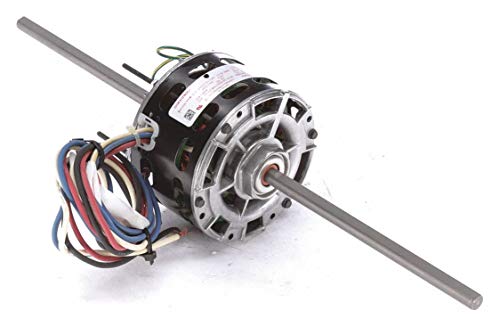

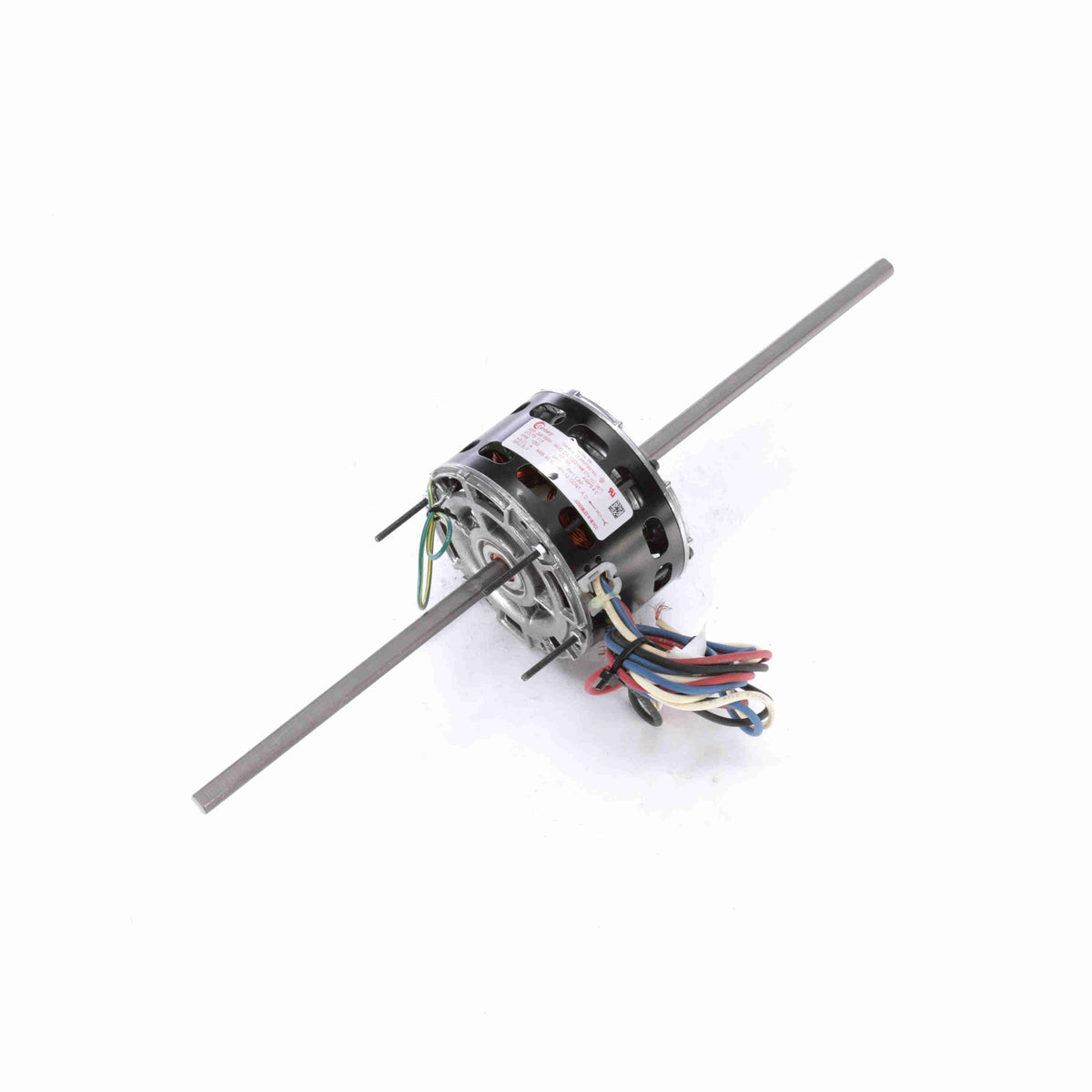

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPM

Brand: Century
PartNumber: 9672
Model: 9672
PackageQuantity: 1
Binding: Misc.
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
9672 is listed in Centu.	A.O. Smith DA3D221, Day.
Amps	4
ASIN	B0092LKGVG
Batteries Required?	No
Bearings	Sleeve
Body Dia.	5 in
Bolt Circle Dia.	4 5/8 in
Brand	Century
Capacitor Required	No
Country of Origin (subj.	Mexico
Duty	Continuous
Duty Cycle	Continuous
Enclosure Type	OAO (Open Air Over)
Frame	42Y
Full Load Amps	4.0
HP	1/12
Hz	60, 60 Hz
Includes	Resilient Mounting Ring
Ins. Class	A
Insulation Class	A
International Shipping	No
Item	Room Air Conditioner Mo.
Item model number	9672
Item Package Quantity	1
Lead Length	38 in
Length Less Shaft	3 3/4 in
Material	HAWA
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Shaded Pole
Motor Diameter	5"
Motor Enclosure Design	Open Air-Over
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Stud
Motor Service Factor	1
Motor Shaft Design	Flat
Motor Shaft Rotation	CCWLE
Motor Sub Application	Room Air Conditioner
Motor Thermal Protection	Auto
Mounting	Band/Ring
Mounting Holes	4
Mounting Stud Pattern	2-5/16 in x 4 in
Mpn	9672
Nameplate RPM	1,050
No. of Speeds	3
Number of Shafts	2
Number of Speeds	3
Overall Length	20 in
Part Number	9672
Phase	1, Single
Product Type	Shaded Pole
Resilient Ring Dia.	2 1/4 in
Ring to Ring Center	4 1/16 in
Rotation	Double Shafted
RPM	1050
RPM Range	1,001-1,100
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2"
Shaft Length	8-1/4" x 8-1/4", 8 19/6.
Ship Weight	9 lbs.
SKU	CU-3455553431
Standards	CSA Certified, UL Recog.
Stud Quantity	4
Stud Size	#8-32 x 1-1/2 in
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Usable @ 200V	No
Usable @ 208V	No
Voltage	115V AC
Voltage Compatibility	115/208-230V AC, 115/23.
Volts	115
Weight	9 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Amazon	B0092LKGVG	52.07	1	In Stock	AO Smith		52.07 @ 1
simsupply.com	CU-3455553431	178.12	1	In Stock	Century		178.12 @ 1
Zoro	G2615961	193.99	1	In Stock	Century	7.55	193.99 @ 1
ktool.net	9672	195.22	1	In Stock	Century		195.22 @ 1
cshincorporated.com	U9672	200.78	1	In Stock	AO Smith / Century	10.0	200.78 @ 1
sustainablesupply.com	C2090702	218.47	1	In Stock	Century	15.0	218.47 @ 1
midwestapplianceparts.com	9672-AO-P	232.34	1	In Stock	AO Smith		232.34 @ 1
emotorpro.com	9672	233.76	1	In Stock	Century	9.0	233.76 @ 1
Raptor Supplies	AD9TWE	306.2544615	1	In Stock	CENTURY		306.2544615 @ 1
