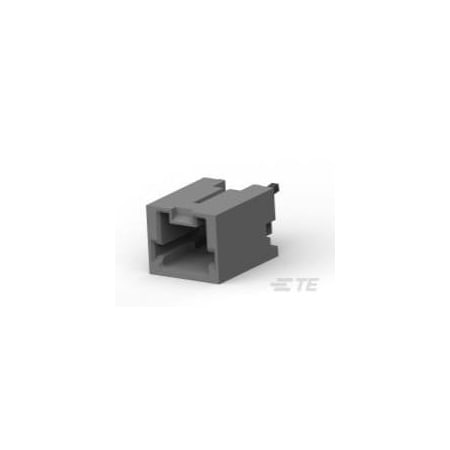

TE CONNECTIVITY / AMP 292207-2

B00OVEGNLG

TE CONNECTIVITY/AMP 292207-2

TE CONNECTIVITY/AMP 292207-2zoom

Attributes

Key Value
Alternate Mfr Part Numb.292207-2
Alternate Part No.571-292207-2
ApplicationsGeneral Purpose
Assembly Process FeaturePick and Place Cover
Base Product Number292207
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)1.5?mm?[?.059?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height8.4?mm?[?.33?in?]
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector TypeHeader
Connector Width4.7?mm?[?.185?in?]
Contact Base MaterialBrass
Contact Current Rating .2
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact Length - Mating0.094" (2.40mm)
Contact Length - Post0.118" (3.00mm)
Contact MaterialBrass
Contact Mating Area Pla.Tin
Contact Mating Area Pla.Matte
Contact Mating Area Pla.1??m?[?39.37??in?]
Contact PlatingTin
Contact Retention Withi.With
Contact ShapeSquare
Contact TypeMale Pin, Pin
Country of Origin (subj.China
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 2POS 1.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA98681-ND
Fastening TypeDetent Lock
FeaturesBoard Guide
Header TypeShrouded
Housing ColorNatural
Housing MaterialNylon(G.F)
Ingress Protection-
Insulation ColorGray
Insulation Height0.272" (6.91mm)
Insulation MaterialPolyamide (PA), Nylon, .
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.292207-2
Manufacturer Product Nu.292207-2
Manufacturer Standard L.11 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating RetentionWith
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts2
Number of Positions2
Number of Positions Loa.All
Number of Rows1
Operating Temperature-30?C ~ 105?C
Operating Temperature R.-22 ? 221??C?[?-30 ? 10.
Operating Voltage50
Overall Contact Length0.307" (7.80mm)
PackageBulk
PackagingTray
Packaging MethodBox & Tray
Packaging Quantity2750
Panel Mount FeatureWith
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Mount AlignmentWith
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeKinked Legs
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
Pitch1.50 mm (0.059"), 1.5 mm
Pitch - Mating0.059" (1.50mm)
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SealableNo
SeriesMini CT, AMP Mini Commo.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder, Kinked Pin, Sol.
Termination Method to P.Through Hole - Solder
Termination Post3?mm?[?.118?in?]
Termination StyleThrough Hole
TradenameCOMMON TERMINATION
TypeVertical Header, Shroud.
UL Flammability RatingUL 94V-0
Voltage Rating50VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark17R93570.1741250AMP - TE CONNECTIVITY0.174 @ 250
TE Connectivity292207-20.199418805TE Connectivity (TE)0.1994 @ 250
Future Electronics90000070.2761250TE Connectivity0.276 @ 250
thumbzoomDigi-Key18553510.35724119666TE Connectivity AMP Connectors0.35724 @ 250
thumbzoomTME292207-20.3710250TE Connectivity0.37 @ 250
us.rs-online.com702847280.399025250TE Connectivity0.39902 @ 250
thumbzoomZoroG7009660780.42In Stock250Te Connectivity0.42 @ 250
thumbzoomswatee.com292207-20.447114368TE Connectivity0.447 @ 250
RS Delivers706-81390.60721280TE Connectivity0.6072 @ 250
AmazonTPB00KSPGE6G5.9912502TE Connectivity5.99 @ 250
