TE Connectivity 292207-3

B00KSPBLZ0

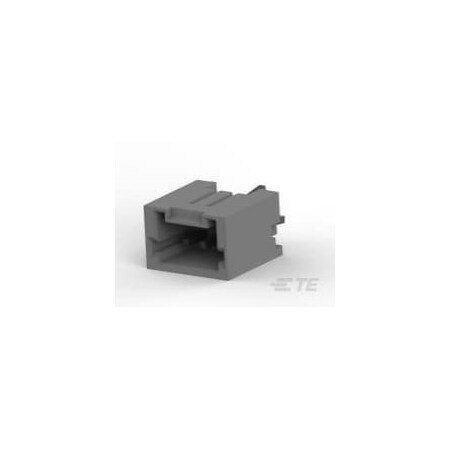

TE Connectivity Part Number 292207-3

TE Connectivity Part Number 292207-3zoom

Attributes

Key Value
Assembly Process FeaturePick and Place Cover
Centerline (Pitch)1.5?mm?[?.059?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Height8.4?mm?[?.33?in?]
Connector Mounting TypeBoard Mount
Connector SystemWire-to-Board
Connector Width4.7?mm?[?.185?in?]
Contact Base MaterialBrass
Contact Current Rating .2
Contact Mating Area Pla.Tin
Contact Mating Area Pla.Matte
Contact Mating Area Pla.1??m?[?39.37??in?]
Contact Retention Withi.With
Contact ShapeSquare
Contact TypePin
Country of Origin (subj.China
Header TypeShrouded
Housing ColorNatural
Housing MaterialNylon(G.F)
Mating RetentionWith
Number of Positions3
Number of Rows1
Operating Temperature R.-22 ? 221??C?[?-30 ? 10.
Operating Voltage50
Packaging MethodBox & Tray
Packaging Quantity2150
Panel Mount FeatureWith
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Mount AlignmentWith
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeKinked Legs
PCB Thickness (Recommen.1.6?mm?[?.063?in?]
SealableNo
Termination Method to P.Through Hole - Solder
Termination Post3?mm?[?.118?in?]
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark46Y92730.1631470AMP - TE CONNECTIVITY0.163 @ 1
WaldomTE CONNECTIVITY AMP BRAND 292207-30.1763503477TE CONNECTIVITY/AMP BRAND0.176 @ 350
Onlinecomponents.com292207-30.23513982TE Connectivity / AMP Brand0.235 @ 1
TE Connectivity292207-30.2431110346TE Connectivity (TE)0.2431 @ 1
thumbzoomZoroG2009660420.3225800312Te Connectivity0.32 @ 25800
HotendaH13044170.411312TE Connectivity AMP Connectors0.41 @ 1
RS Delivers683-22760.475211520TE Connectivity0.4752 @ 1
