Schneider Electric GV2P05

B00CONPFR4

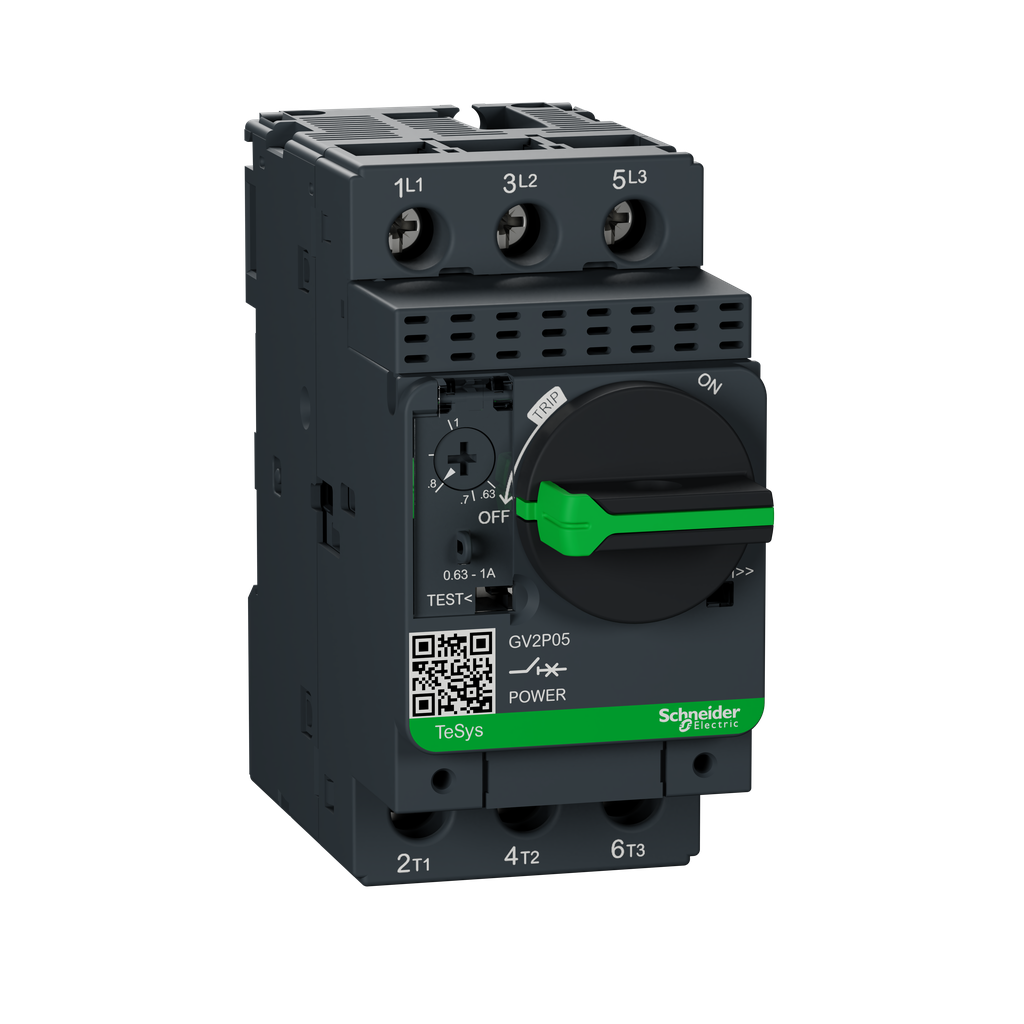

SCHNEIDER ELECTRIC 600-VAC 1-AMP GV2P05 Manual Starter 600VAC 1AMP IEC

SCHNEIDER ELECTRIC 600-VAC 1-AMP GV2P05 Manual Starter 600VAC 1AMP IECzoom

Attributes

Key Value
3-Phase HP Rating (Max.)1/2 hp
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.1 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Amperage Rating0.63-1A
Amps AC0.63 to 1.00
ApplicationMOTOR
BrandSchneider, Schneider El.
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2P05
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp Terminal
Control Typerotary handle
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Stock9
Depth97 mm, 3.83 in
Description/Special Fea.Screw Clamp Terminals, .
Device Applicationmotor protection
Device Short NameGV2P
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
Height3.5 in, 89 mm
HP @ 3 Phase - 460-575V1/2 hp, 1/2
HP @ 3 Phase - 480V1/2 hp
HP @ 3 Phase - 575V1/2 hp
Ik Degree Of ProtectionIK04
International ShippingNo
Ip Degree Of ProtectionIP20 IEC 60529
ItemManual Motor Starter
Item TypeCIRCUIT BREAKER
Lead TimeExpected to ship in 1-2.
Line Rated Current1 A
Made in USANo
Magnetic Tripping Curre.13-13 A
ManufacturerSchneider Electric
Max. Voltage600V AC
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Motor FLA Range0.63-1 A
Motor Power Kw0.25-0.25 kW 400/415 V .
MountingScrew
MpnGV2P05
Network Frequency50/60 Hz IEC 60947-4-1
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
OperatorRotary Knob
Overload Relay Amp Sett.0.63 to 1 A, 0.63 to 1A
Package Quantity1
Phase Failure Sensitivi.yes IEC 60947-4-1
Phase Loss SensitivityNo
Pilot LightNo
Poles Description3P
Power Dissipation Per P.2.5 W
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Reset TypeAMBIENT COMPENSATED BIM.
SeriesTeSys GV2, TeSys Deca S.
Size45 MM,89 MM,97 MM
SKUZO-G2611034
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage1 Amp
Starter Overload Amp Se.0.63-1 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandGV2P,TESYS,TESYS GV2
Sub ComponentTeSys GV2 Manual Starte.
SubCategoryElectrical
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Thermal Protection Adju.0.63-1 A IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologythermal-magnetic
UNSPSC39121521
UPC785901832874
UPC Code785901832874
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V AC 50/60 Hz IEC 6.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm, 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEGV2P0570.08123SCHNEIDER ELECTRIC70.08 @ 1
RS Delivers305-2155149.856113Schneider Electric149.856 @ 1
Graybar96073658201.286412Square D (Schneider Electric)201.2864 @ 1
thumbzoomblackhawksupply.comGV2P05206.211In StockSquare D206.21 @ 1
thumbzoommostelectric.comGV2P05219.7712SQUARE D/TELEMECANIQUE219.77 @ 1
thumbzoomgordonelectricsupply.comGV2P05245.01In Stock10SQUARE D245.0 @ 1
rspsupply.comSCHNEIDER GV2P05253.441In StockSchneider Electric253.44 @ 1
grainger.caTLQGV2P05255.113550941In StockSCHNEIDER ELECTRIC0.75255.11355094 @ 1
Mouser996-GV2P05255.2413Schneider Electric255.24 @ 1
thumbzoommayerelectric.comSQDGV2P05266.341In StockSQUARE D266.34 @ 1
thumbzoomZoroG2611034268.99124Square D0.75268.99 @ 1
thumbzoomsimsupply.comZO-G2611034287.6519Schneider287.65 @ 1
thumbzoomsustainablesupply.comC1182093290.061In StockSchneider Electric0.75290.06 @ 1
thumbzoomNational Supply Network69648756292.351In StockSchneider Electric292.35 @ 1
thumbzoomNewark15B8810327.811In StockSCHNEIDER ELECTRIC327.81 @ 1
us.rs-online.com70379150331.9515Schneider Electric331.95 @ 1
thumbzoomcrescentelectric.com26620334.681In StockSchneider Electric334.68 @ 1
simplybreakers.comGV2P05401.991In StockSchneider Electric401.99 @ 1
thumbzoomRaptor SuppliesAH2PQM451.632871In StockSCHNEIDER ELECTRIC451.63287 @ 1
