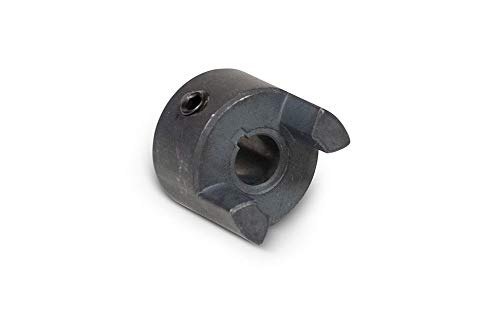

TB Woods L070X9/16 L-JAW HUB (L0709/16)

TB Woods L070X9/16 L-JAW HUB (L0709/16)

zoom

Brand: TB Woods
PartNumber: L0709/16
Size: One Size
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Bore shape	Finish with keyway
Bore size	9/16
Bore tolerance	+.0005 to +.0015
Bore tolerance (in)	+0.0005 to +0.0015
Center	0.5
Coupling size	L070
Dimension (in) (HD)	NA
Dimension (in) (L)	1.21
Dimension (in) (LTB)	0.75
Dimension (in) (S)	0.38
Dimension (in.) (OD)	1.360
Hub material	Sinter carbon steel
Jaw type	Straight
Keyseat	1/8 x 1/16
Keyway	1/8 in x 1/16 in
Length-through-bore	0.75
Material type	Sinter carbon steel
Max compatible bore size	0.75
Max parallel misalignme.	0.015
Max RPM	14000
Max speed	14000
Min compatible bore size	0.25
O.D.	1.36
Overall length	2
Product family	L-jaw hub
Setscrew length	0.25
Setscrew length (in)	1/4
Setscrew size	1/4 20 UNC - 2B
Size code	70

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	336935	6.85	10	In Stock		TB Woods		6.85 @ 10
