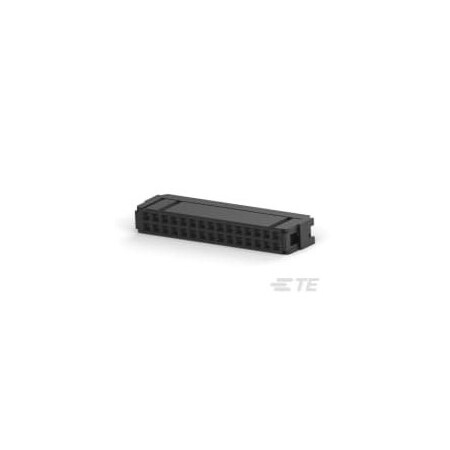

Amp - Te Connectivity Wire-Board Connector Receptacle 30 Position, 2.54Mm - 1658620-7

Amp - Te Connectivity Wire-Board Connector Receptacle 30 Position, 2.54Mm - 1658620-7zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Alternate Part No.571-1658620-7
ApplicationWire-to-Board, Signal
BrandTE Connectivity / AMP
Cable TerminationRibbon Cable
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
Color2, Black
Connection MaterialPhosphor Bronze
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeForked, Receptacle
Connector Width6.1?mm?[?.2402?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact Finish15.0?in (0.38?m)
Contact Finish ThicknessBlack
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold
Contact Plating Thickne.0.38 ?m
Contact Type30, Socket
Current Rating1 A
Fastening TypeIDC
FeaturesGold
Flammability RatingUL 94 V-0
Header TypePin Header
Height15.16 mm
Hole Center to Center2.54 mm
Housing ColorBlack
Housing MaterialThermoplastic
ItemConnector
Length42.67 mm
ManufacturerTE Connectivity
Manufacturer Part No.1658620-7
MaterialThermoplastic
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Max. Insulation Dia.0.94 mm
Max. Single Wire Size26 AWG
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Min. Single Wire Size28 AWG
Mounting StyleCable
Mounting Type-
Number of Contacts30
Number of Positions30, 0.100" (2.54mm)
Number of Rows2
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
PackageActive
Packaging MethodBox & Tube, Tube
Packaging Quantity60
Panel Mount FeatureWithout
Part StatusReceptacle
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pitch2.54 mm, 0.100" (2.54mm.
Primary TypeCable Connector
Product CategoryHeaders & Wire Housings
Product TypeWire Housings
Row SpacingFree Hanging (In-Line)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesTube, AMP-LATCH NOVO, A.
StandardsCSA Certified; UL E2847.
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder; .
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
Termination StyleIDC
TradenameAMP-LATCH
TypeReceptacle Housing, Rec.
UL Flammability RatingUL 94V-0
Width0.2402 in
Wire GaugeFeed Through
Wire Size.08 ? .15, 28 ? 26, 158.
Wire Type26-28 AWG
