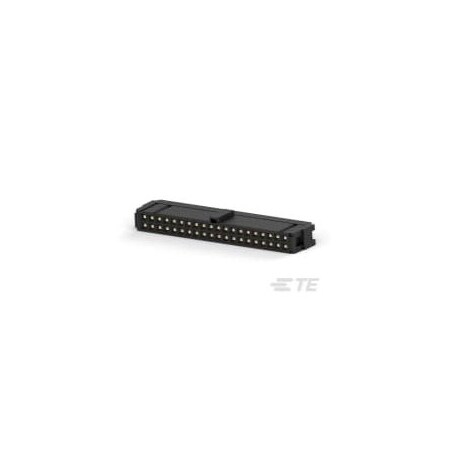

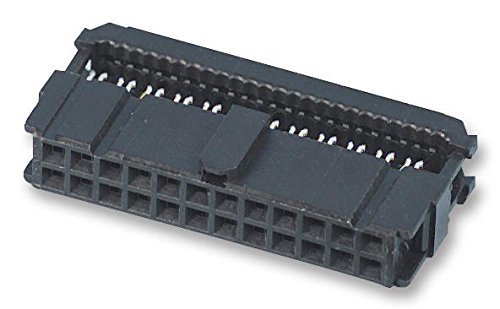

Amp - Te Connectivity Wire-Board Connector Receptacle 40 Position, 2.54Mm - 1658621-9

Amp - Te Connectivity Wire-Board Connector Receptacle 40 Position, 2.54Mm - 1658621-9zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
Agency/StandardCSA, UL
AngleStraight
Base Product Number1658621
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ColourBlack
Connectorplug, Wire & Cable, Rec.
Connector Height15.16?mm?[?.5968?in?]
Connector Length55.37?mm?[?2.1799?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector pinout layout2x20
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeConnector Assembly, Rec.
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact DesignTuning Fork
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold Over Nickel
Contact platinggold-plated
Contact Termination Are.Tin
Contact Termination Are.1.27??m?[?50??in?]
Contact TypeForked, Socket
Contacts pitch2.54mm
Country of Origin (subj.China
CSA File NumberLR 7189
Current Rating1 A
Daisy ChainWithout
DescriptionCONN RCPT 40P IDC 26-28.
Detailed Description40 Position Rectangular.
Digi-Key Part NumberAKC40H-ND
Ejection LatchesWithout
Electrical mountingIDC
Fastening Type-
FeaturesFeed Through, Polarizin.
Header TypePin Header
Housing ColorBlack
Housing MaterialThermoplastic
Insulation Resistance5000
Kind of connectorfemale
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658621-9
Manufacturer Standard L.16 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Mechanical mountingfor ribbon cable
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts40
Number of pins40
Number of Positions40
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Operating Voltage250
Overall Length2.18 "
PackageTube
Packaging MethodBox & Carton
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch0.100" (2.54mm), 2.54 m.
PolarizationWith
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Product TypeConnector
Ribbon cable pitch1.27mm
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
Type of connectorIDC
UL File NumberE28476
UL Flammability RatingUL 94V-0
UL RatingRecognized
UL Voltage Rating250
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable
Wire/Cable TypeRibbon Cable
