TE Connectivity / AMP 1658623-3

B00LQQZ3AO

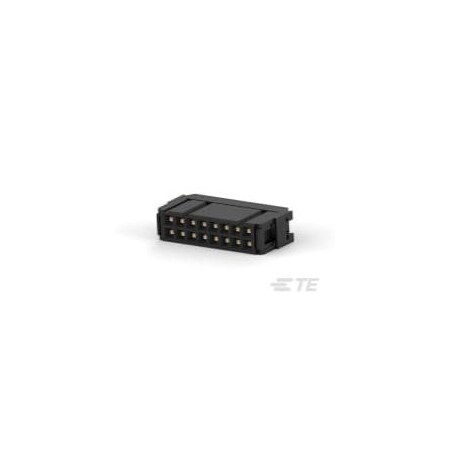

TE Connectivity / AMP 1658623-3 Wire-Board Connector Receptacle 16POS, 2.54MM

TE Connectivity / AMP 1658623-3 Wire-Board Connector Receptacle 16POS, 2.54MMzoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
Alternate Mfr Part Numb.1658623-3
AngleStraight
Base Product Number1658623
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width6.1?mm?[?.2402?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact PlatingGold Over Nickel
Contact TypeForked, Socket
Country of Origin (subj.China
Current Rating1 A
DescriptionCONN RCPT 16POS IDC 26-.
Detailed Description16 Position Rectangular.
Digi-Key Part NumberASC16B-ND
Fastening Type-
FeaturesFeed Through
Header TypePin Header
Housing ColorBlack
Housing FinishTin-Lead
Housing MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658623-3
Manufacturer Standard L.17 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts16
Number of Positions16
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length0.98 "
PackageBulk
Packaging MethodBox & Tube, Tube
Packaging Quantity60
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch0.100" (2.54mm), 2.54 m.
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
Special FeaturesMilitary Polarized
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL Flammability RatingUL 94V-0
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet1658623-30.997605400TE Connectivity0.997 @ 60
WaldomTE CONNECTIVITY AMP BRAND 1658623-31.07608857TE CONNECTIVITY/AMP BRAND1.07 @ 60
us.rs-online.com700427861.13125TE Connectivity1.13 @ 25
Onlinecomponents.com1658623-31.2711884TE Connectivity / AMP Brand1.27 @ 25
Future Electronics38918681.344190TE Connectivity1.344 @ 25
TE Connectivity1658623-31.47461169TE Connectivity (TE)1.4746 @ 25
thumbzoomZoroG1010412371.816025Te Connectivity1.81 @ 60
thumbzoomNewark73K62282.181129AMP - TE CONNECTIVITY2.18 @ 25
thumbzoomDigi-Key8254352.217611211TE Connectivity AMP Connectors2.2176 @ 25
AmazonSCB07KWHQK9P35.13125TE Connectivity / AMP35.13 @ 25
