TE Connectivity 1761606-6

B00KSO29AC

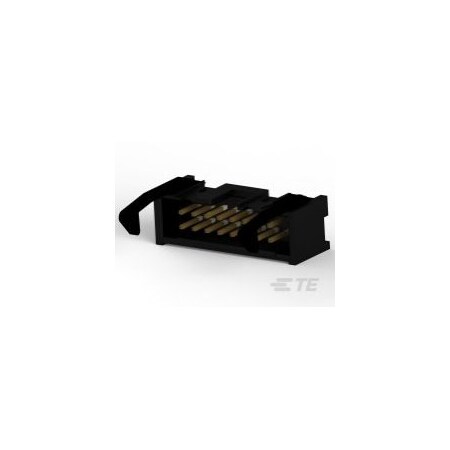

TE Connectivity Part Number 1761606-6

TE Connectivity Part Number 1761606-6zoom

Attributes

Key Value
Alternate Part No.571-1761606-6
AngleVertical
Applications-
Base Product Number1761606
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPlug, Printed Circuit B.
Connector Height9.19?mm?[?.36?in?]
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold Flash
Contact Mating Area Pla..762??m?[?30 ? 30??in?]
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER VERT 16POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA31169-ND
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Flammability RatingUL 94 V-0
Header TypePin Header
Housing ColorBlack
Housing MaterialPBT, Nylon
Ingress Protection-
Insulation ColorBlack
Insulation Height0.404" (10.26mm)
Insulation MaterialPolybutylene Terephthal.
Latching TypeEjection
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1761606-6
Manufacturer Product Nu.1761606-6
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeCenter
Mating Entry LocationTop
Mating RetentionWith
Mating Retention TypeLatch
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Contacts16
Number of Positions16
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Contact Length-
PackageTube
PackagingTube
Packaging MethodTube
Packaging Quantity19
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pitch2.54 mm, 2.54 mm (0.100.
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-LATCH, AMP-LATCH Se.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder, Through Hole
Termination Method to P.Through Hole - Solder
Termination Post2.6?mm?[?.102?in?]
Termination Post Length2.6 mm
Termination StyleThrough Hole
TradenameAMP-LATCH
TypeVertical Header, Shroud.
UL Flammability RatingUL 94V-0
Voltage Rating250 V, 250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1761606-63.4212546TE Connectivity / AMP Brand3.42 @ 1
WaldomTE CONNECTIVITY AMP BRAND 1761606-63.4338268TE CONNECTIVITY/AMP BRAND3.43 @ 19
RS Delivers165-08313.8268131TE Connectivity3.8268 @ 1
TE Connectivity1761606-64.433311365TE Connectivity (TE)4.4333 @ 1
thumbzoomNewark42K67445.51855In StockAMP - TE CONNECTIVITY5.51 @ 855
thumbzoomZoroG6009397525.5419In StockTe Connectivity5.54 @ 19
thumbzoomswatee.com1761606-66.931874TE Connectivity6.93 @ 1
AmazonSCB00OVEI10C6.95131TE Connectivity %2F AMP0.0006256.95 @ 1
thumbzoomDigi-Key7691137.93211882TE Connectivity AMP Connectors7.932 @ 1
us.rs-online.com700858069.241510TE Connectivity9.24 @ 1
