TE Connectivity / AMP 1761607-5

B00FRBVQM8

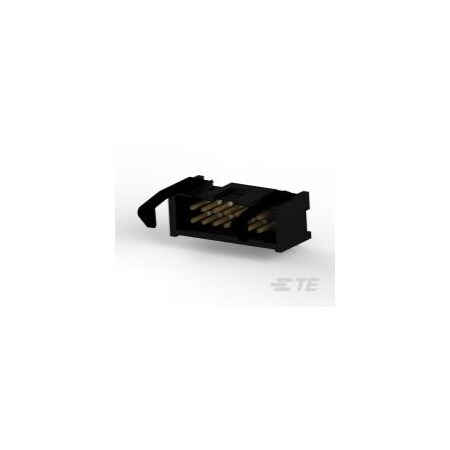

T-E Connectivity 1761607-5 (1 pcs) IDC LOW PRO HDR 14P RA LG LAT BLK

T-E Connectivity 1761607-5 (1 pcs) IDC LOW PRO HDR 14P RA LG LAT BLKzoom

Attributes

Key Value
AngleRight Angle
Applications-
Base Product Number1761607
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPlug, Printed Circuit B.
Connector Height9.19?mm?[?.36?in?]
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold Flash
Contact Mating Area Pla..762??m?[?30 ? 30??in?]
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER R/A 14POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA31177-ND
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Header TypePin Header
Housing ColorBlack
Housing MaterialPBT
Ingress Protection-
Insulation ColorBlack
Insulation Height0.362" (9.20mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1761607-5
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeCenter
Mating Entry LocationTop
Mating RetentionWith
Mating Retention TypeLatch
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Contacts14
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Contact Length-
PackageTube
Packaging MethodTube
Packaging Quantity20
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationRight Angle
PCB Mount RetentionWithout
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH Se.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder, Through Hole
Termination Method to P.Through Hole - Solder
Termination Post2.6?mm?[?.102?in?]
TypeRight Angle Header
UL Flammability RatingUL 94V-0
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1761607-53.0511814TE Connectivity / AMP Brand3.05 @ 25
WaldomTE CONNECTIVITY AMP BRAND 1761607-53.3720577TE CONNECTIVITY/AMP BRAND3.37 @ 25
TE Connectivity1761607-54.369611673TE Connectivity (TE)4.3696 @ 25
thumbzoomNewark42K67474.99125AMP - TE CONNECTIVITY4.99 @ 25
Future Electronics27417185.5681600TE Connectivity5.568 @ 25
Arrow1761607-55.63811194TE Connectivity5.638 @ 25
thumbzoomZoroG7009399045.7646025Te Connectivity5.76 @ 460
us.rs-online.com700858005.9990025TE Connectivity5.99 @ 900
RS Delivers719-87666.192125TE Connectivity6.192 @ 25
thumbzoomDigi-Key7691216.817212716TE Connectivity AMP Connectors6.8172 @ 25
