Amp - Te Connectivity 1658621-6

B00DECUCN6

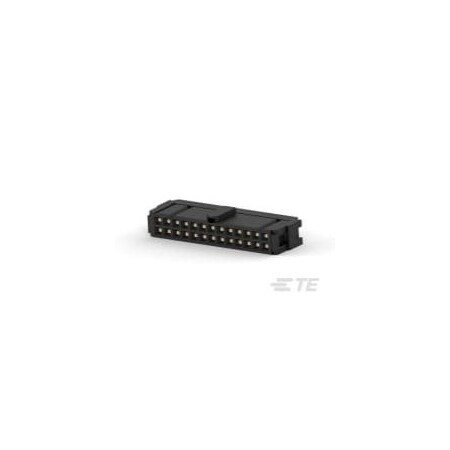

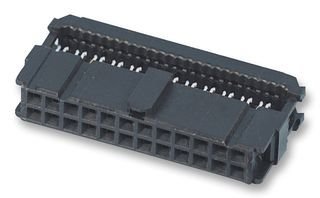

Amp - Te Connectivity Wire-Board Coboard Connector Receptacle 26 Position, 2.54Mm - 1658621-6

Amp - Te Connectivity Wire-Board Coboard Connector Receptacle 26 Position, 2.54Mm - 1658621-6zoom

Attributes

Key Value
<a target="_blank" href.//www.ibselectronics.co.
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
Alternate Mfr Part Numb.1658621-6
Alternate Part No.571-1658621-6
AngleStraight
ApplicationWire-to-Board
Base Product Number1658621
BrandTE Connectivity / AMP
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..38??m?[?15 ? 15??in?]
Contact PlatingGold Over Nickel, Gold
Contact TypeForked, Socket
Country of Origin (subj.China
Current Rating1 A
DescriptionCONN RCPT 26P IDC 26-28.
Detailed Description26 Position Rectangular.
Digi-Key Part NumberAKC26H-ND
Fastening Type-
FeaturesFeed Through, Polarizin.
Header TypePin Header
Housing ColorBlack
Housing FinishTin-Lead
Housing MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1658621-6
Manufacturer Product Nu.1658621-6
Manufacturer Standard L.15 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting StyleCable, Free Hanging
Mounting TypeFree Hanging (In-Line)
Number of Contacts26
Number of Positions26
Number of Positions / C.26
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length1.48 "
PackageTube
Packaging60, Tube
Packaging MethodBox & Tube, Tube
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch2.54 mm, 0.100" (2.54mm.
Primary TypeCable Connector
Product CategoryHeaders & Wire Housings
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Product TypeReceptacles / Sockets -.
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
Termination StyleIDC
TradenameAMP-Latch
TypeReceptacle Housing, Rec.
UL Flammability RatingUL 94V-0
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1658621-61.1150500TE CONNECTIVITY/AMP BRAND1.11 @ 50
Avnet1658621-61.221600TE Connectivity1.22 @ 25
Onlinecomponents.com1658621-61.43113134TE Connectivity / AMP Brand1.43 @ 25
thumbzoomNewark73K62171.516645AMP - TE CONNECTIVITY1.5 @ 25
TE Connectivity1658621-61.666914056TE Connectivity (TE)1.6669 @ 25
thumbzoomZoroG0010410921.845025Te Connectivity1.84 @ 50
thumbzoomTME1658621-61.87125TE Connectivity1.87 @ 25
thumbzoomIBS Electronics1658621-62.22125TE Connectivity2.22 @ 25
Future Electronics99988082.281206TE Connectivity2.28 @ 25
thumbzoomDigi-Key8254042.30881629TE Connectivity AMP Connectors2.3088 @ 25
thumbzoomswatee.com1658621-62.6713946TE Connectivity2.67 @ 25
us.rs-online.com700430052.731687TE Connectivity2.73 @ 25
RS Delivers454-2384P3.10812440TE Connectivity3.108 @ 25
thumbzoomJameco9015203.1925025TE Connectivity3.192 @ 50
AmazonTPB00DECUCN69.581252TE CONNECTIVITY / AMP9.58 @ 25
