TE Connectivity 1658622-4

B06WWRD4BG

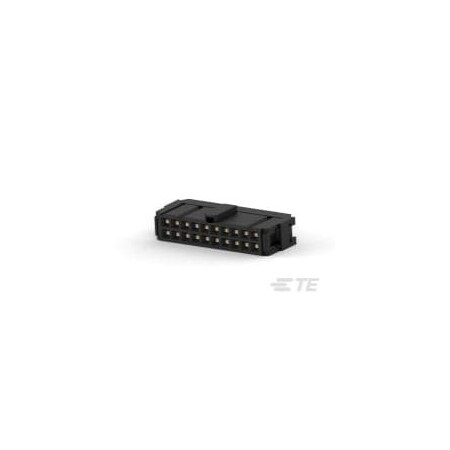

TE Connectivity 1658622-4 PCB Socket-Plug-Wire-Mount AMP Latch 20 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 10 Item(s)

TE Connectivity 1658622-4 PCB Socket-Plug-Wire-Mount AMP Latch 20 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 10 Item(s)zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency/StandardCSA, UL
Alternate Mfr Part Numb.1658622-4
ApplicationSignal
Base Product Number1658622
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
Connection MaterialPhosphor Bronze
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Length29.97?mm?[?1.1799?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector Terminates ToWire & Cable
Connector TypeConnector Assembly, Rec.
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact DesignTuning Fork
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0, 30.0?in (0.76?m)
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact Plating Thickne.0.76 ?m
Contact Termination Are.Tin
Contact Termination Are.1.27??m?[?50??in?]
Contact TypeForked, Socket
CSA File NumberLR 7189
Daisy ChainWithout
DescriptionCONN RCPT 20POS IDC 26-.
Detailed Description20 Position Rectangular.
Digi-Key Part NumberAKC20B-ND
Ejection LatchesWithout
Fastening Type-
FeaturesFeed Through, Polarizin.
Flammability RatingUL 94 V-0
Header TypePin Header
Height15.16 mm
Hole Center to Center2.54 mm
Housing ColorBlack
Housing MaterialThermoplastic
Insulation Resistance5000
ItemConnector
Lead Free Status / RoHS.RoHS Compliant
Length29.97 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Part Number1658622-4
Manufacturer Product Nu.1658622-4
Manufacturer Standard L.5 Weeks, 16 Weeks
MaterialThermoplastic
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Max. Insulation Dia.0.037 in
Max. Single Wire Size26 AWG
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Min. Single Wire Size28 AWG
Mounting TypeFree Hanging (In-Line)
Number of Contacts20
Number of Positions20
Number of Rows2
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Operating Voltage250
PackageBulk
PackagingBulk Pack
Packaging MethodBox & Tube, Tube
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pitch0.100" (2.54mm), 2.54 m.
PolarizationWith
Primary TypeCable Connector
Product StatusActive
Product TypeConnector
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
Standard Package50
StandardsCSA Certified; UL E2847.
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder; .
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL File NumberE28476
UL Flammability RatingUL 94V-0
UL RatingRecognized
UL Voltage Rating250
Width0.2949 in
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable
Wire/Cable TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodParts1658622-40.644002300TE Connectivity0.64 @ 400
WaldomTE CONNECTIVITY AMP BRAND 1658622-40.7410025360TE CONNECTIVITY/AMP BRAND0.74 @ 100
Sager Electronics1658622-40.75313084TE Connectivity0.753 @ 25
Onlinecomponents.com1658622-40.9519080TE Connectivity / AMP Brand0.95 @ 25
thumbzoomNewark73K62220.99615174AMP - TE CONNECTIVITY0.996 @ 25
thumbzoomNEP Electronics1658622-41.013710018631TE Connectivity1.0137 @ 100
thumbzoomCarlton Bates Company741149190021.18125TE CONNECTIVITY1.18 @ 25
TE Connectivity1658622-41.2597918708TE Connectivity (TE)1.25979 @ 25
Future Electronics99890391.30752115250TE Connectivity1.30752 @ 25
thumbzoomDigi-Key8254142.02464128060TE Connectivity AMP Connectors2.02464 @ 25
RS Delivers719-87942.3521467TE Connectivity2.352 @ 25
us.rs-online.com700427782.73125TE Connectivity2.73 @ 25
Hawk Electronics1658622-43.4112525TE Connectivity3.41 @ 125
thumbzoomZoroG901041000125.0125Te Connectivity125.0 @ 25
