TE Connectivity / AMP 2057689-1

B083Q4WBPJ

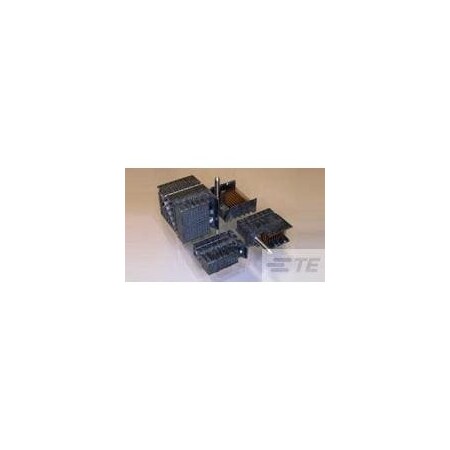

2057689-1, Impact, 3 Pair, DAUGHTERCARD 8 Column, Right Guided, Signal Module, 0.46 Eyelet (10 Items)

2057689-1, Impact, 3 Pair, DAUGHTERCARD 8 Column, Right Guided, Signal Module, 0.46 Eyelet (10 Items)zoom

Attributes

Key Value
Base Product Number2057689
Board-to-Board Configur.Right Angle
CategoryConnectors, Interconnec.
Centerline (Pitch)1.9?mm?[?.075?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Height13.3?mm?[?.524?in?]
Connector Length22.8?mm?[?.898?in?]
Connector Mounting TypeBoard Mount
Connector StyleImpact, Guide Right, Re.
Connector SystemBoard-to-Board
Connector TypeReceptacle, Female Sock.
Connector UsageDaughtercard
Connector Width24.2?mm?[?.953?in?]
Contact Base MaterialCopper Alloy
Contact Current Rating ..75
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact LayoutInline
Contact Layout, Typical48 Signal, 24 Ground
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact ShapeDual Beam
Contact TypeSocket
Contact Underplating Ma.Nickel
Country of Origin (subj.China
CSA CertifiedYes
Current Rating (Amps)0.75A per Contact
Data Rate25
DescriptionIMP100S,R,RA3P8C,RG,46
Detailed Description72 Connector Receptacle.
Digi-Key Part Number17-2057689-1-ND
FeaturesBoard Guide
Guide HardwareWith
Guide LocationRight
Housing ColorBlack
Housing MaterialLCP (Liquid Crystal Pol.
Make First / Break LastNo
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2057689-1
Manufacturer Standard L.14 Weeks
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeKeyed
Mating RetentionWithout
MfrTE Connectivity AMP Con.
Mounting TypeBoard Edge, Through Hol.
Number of Columns8
Number of Differential .3
Number of Ground Positi.24
Number of Pairs24
Number of Positions72
Number of Positions Loa.All
Number of Rows9
Number of Shrouded Sides0
Number of Signal Positi.48
Operating Temperature-55?C ~ 85?C
Operating Temperature R.-55 ? 85??C?[?-67 ? 185.
Operating Voltage30
PackageBulk
Packaging MethodBox & Tube, Package
PCB Contact Termination.Tin
PCB Contact Termination.Matte
PCB Contact Termination.1.27??m?[?50??in?]
PCB Hole Diameter.46?mm?[?.018?in?]
PCB Mount Alignment TypeLocating Posts
PCB Mount OrientationRight Angle
PCB Mount RetentionWith
PCB Mount Retention TypeAction/Compliant Tail &.
PCB Thickness (Recommen.1
Pitch0.075" (1.90mm)
Product StatusActive
Product TypeConnector
Row-to-Row Spacing1.35?mm?[?.053?in?]
SealableNo
Series-
ShroudedUnshrouded
Signal ArrangementDifferential
StackableNo
TerminationPress-Fit
Termination Method to P.Through Hole - Press-Fit
Termination Post1.2?mm?[?.047?in?]
UL File NumberE28476
UL Flammability RatingUL 94V-0
UL RatingRecognized
Underplate Material Thi.1.27??m?[?50??in?]
Voltage Rating29.9VAC/DC
